Wholesale Price Ois Ptz Camera - Bi-spectrum 30~300mm Long Range Thermal Camera – Huanyu

简短描述:

产品详情

产品标签

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate in our success for 4g Ptz Solar Camera , Gimbal Drone Camera Module , Camera Ptz Zoom 10x , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Wholesale Price Ois Ptz Camera - Bi-spectrum 30~300mm Long Range Thermal Camera – Huanyu Detail:

Description

Integrates HD visible light camera, uncooled thermal camera

Optional(laser ranging finder optional , automatic tracking, gyro stabilization, intelligent analysis)and precise electronic control.

It is designed for air target video acquisition, target warning, radar linkage and other applications designed

Which can adapt to all-weather, all-time, full-dimensional discovery.

Demo

Specification

Model		UV-DMATVC61023-2292
Effective Distance (DRI)	Vehicle (2.3*2.3m)	Detection: 20km; Recognition: 6.7km; Identification: 3.3km
	Human (1.8*0.6m)	Detection: 8km; Recognition: 5km; Identification: 2.5km
	Drone (DJ4 Size)	Detection: 4.8km(thermal), 3.5km (HD)/ Tracking: 2km (thermal), 1.8km (HD)
	IVS Range	4.6km for Vehicle; 1.6km for Human
Thermal Sensor	Sensor	5th generation uncooled FPA sensor
	Effective Pixels	640×512, 50Hz
	Pixel Size	17μm
	NETD	≤45mK
	Spectral Range	7.5 ~ 14μm, LWIR
Thermal Lens	Focal length	30-300mm 10X
	FOV (640*512)	20.6°×16.5°～2.1°×1.6°
	Angular radian	0.56～0.057mrad
	Digital Zoom	1~64X Continuous Zoom (Step 0.1)
Visible Camera	Sensor	1/1.8” Star Level CMOS, Integrated ICR Dual Filter D/N Switch
	Resolution	1920(H)x1080(V)
	Frame Rate	32Kbps～16Mbps，60Hz
	Min. Illumination	0.05Lux (Color), 0.01Lux(B/W)
	SD Card	Support
Visible Lens	Lens Size	6.1~561mm 92X
	Image Stabilization	Support
	Defog	Support
	Focus Control	Manual/Auto
	Digital Zoom	16X
Image	Image Stabilization	Support Electronic Image Stabilization
	Enhance	Stable operational temperature without TEC, starting time less than 4 seconds
	SDE	Support SDE digital image processing
	Pseudo Color	16 pseudo color and B/W, B/W inverse
	AGC	Support
	Ranging Ruler	Support
Function Option (Optional)	Laser Option	5W (500m); 10W (1.5km); 12W (2km); 15W (3km); 20W (4km)
	LRF Option	300m; 1.8km; 5km; 8km; 10km; 15km; 20km
	GPS	Accuracy: ＜2.5m; Autonomous 50%: ＜2m (SBAS)
	Electronic Compass	Range: 0 ~ 360 °, accuracy: heading: 0.5 °, pitch: 0.1 °, roll: 0.1 °, resolution: 0.01 °
Enhance	Strong Light Protect	Support
	Temp Correction	Thermal imaging clarity is not affected by temperature.
	Scene mode	Support multi-configuration scenarios, adapt to different environment
	Lens Servo	Support lens preset, focal length return and focal length location.
	Azimuth Information	support angle real-time return and positioning; azimuth video overlay real-time display.
	Diagnostic Functions	Disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (insufficient Space, error, no SD card), video masking alarm, anti-sun damage (threshold, masking time can be set).
	Life Index Recording	Working time, shutter times, ambient temperature, core device temperature
	Power off memory	Support, can restore power off state
	Remote maintenance	remote restart, remote upgrade function, convenient system maintenance
Intelligent	Fire Detection	Threshold 255 levels, targets 1-16 can be set, hot spot tracking
	AI Analysis	Support intrusion, boundary crossing, entering/leaving area, motion, wandering, people gathering, fast moving, target tracking, items left behind and items taken detection; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering
	Auto-tracking	Single/multi scene tracking; panoramic tracking; alarm linkage tracking
	AR Fusion	512 AR intelligent information fusion
	Distance Measure	Support passive distance measurement
	Image fusion	Support 18 kinds of double light fusion mode, support picture-in-picture function
PTZ	Accuracy	0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Optional）
	Rotation	Pan: 0～360°, tilt: -90～+90°
	Speed	Pan: 0.01~60°/S, Tilt: 0.01~60°/S
	Preset	255
	Enhance	Fan/Wiper/Heater attached
	Split	Upper and lower split design, can be packaged and transported, combined quickly
	Zero Setting	support the setting of pan and pitch zero
	Gyro Stable (option)	Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10°
	Position Time	less than 4s
	Angle Feedback	support real-time / query return and positioning functions of horizontal and pitch angles
Video Audio (Single IP)	Thermal Resolution	1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
	Visible Resolution	1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240
	Record Rate	32Kbps～16Mbps
	Audio encoding	G.711A/ G.711U/G726
	OSD settings	Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings
Interface	Ethernet	RS-485（PELCO D protocol, baud rate 2400bps）,RS-232（option）,RJ45
	Protocol	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF
	Video Output	PAL/NTSC
	Power	DC48V
	Compression	H.265 / H.264 / MJPEG
Environmental	Operate Temp	-25℃～+55℃（-40℃ optional）
	Storage Temp	-35℃～+75℃
	Humidity	<90%
	Ingress Protect	IP66
	Housing	PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug
	Wind resistance	spherical, anti-shake, anti-33m/s strong wind
	Anti-fog/salty	PH 6.5～7.2 (No less than 700 hours)
	Power	250W (Peak)/ 50W (Stable)
	Dimension	572mm×472mm×652mm

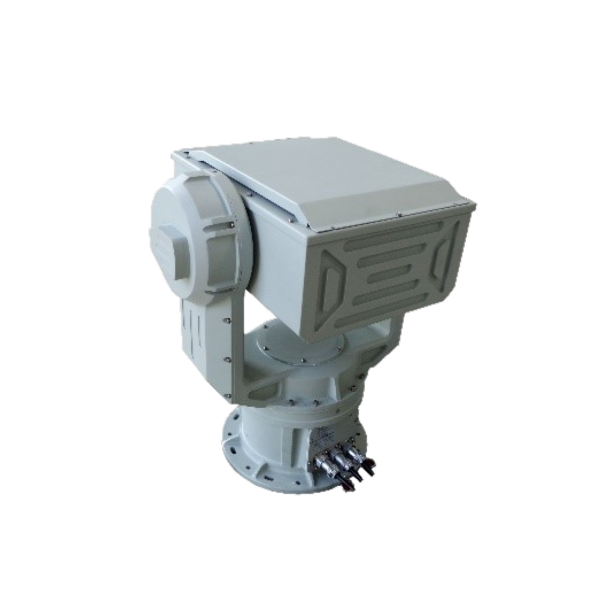

Product detail pictures:
