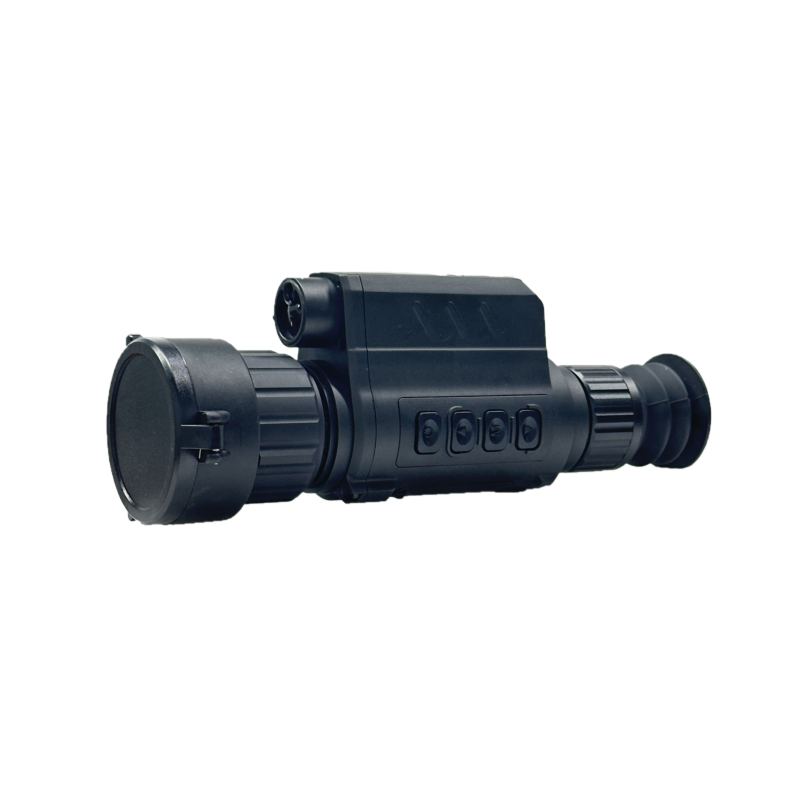

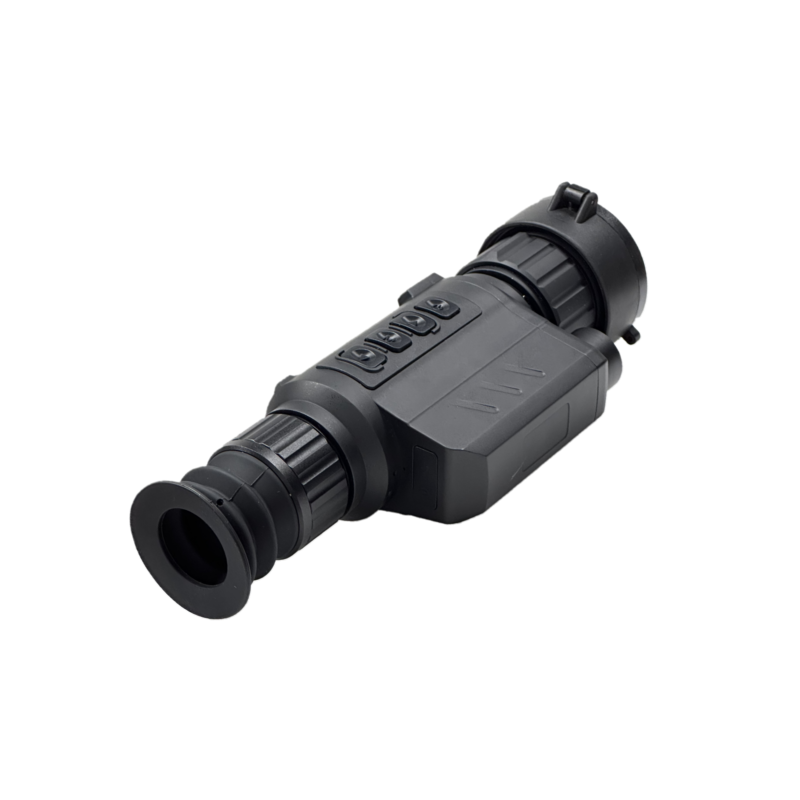

UV-TS Series 50mm Thermal Imaging Sight
简短描述:
-
Thermal Scope Series
This product can observe the surrounding environment in
Complete darkness
All-weather use
Set observation
Ranging
Magnification and other functions in one
Efficient ergonomics, convenient rail adaptation to a variety of equipment, can identify potential hazards in complex environments in advance
Video
Specifications
|
Model |
UV-TS342R2 |
UV-TS650R2 |
|
Infrared module |
||
|
Image Sensor |
UFPA (VOx) |
UFPA (VOx) |
|
Resolution |
384×288 |
640×512 |
|
Pixel pitch |
12um |
12um |
|
Frame rate |
50Hz |
50Hz |
|
NETD |
≤50mk |
≤50mk |
|
Optical parameter |
||
|
Focal length |
42mm |
50mm |
|
Aperture |
F1.0 |
F1.0 |
|
Field of view |
6.3°×4.7° |
7.2°×5.8° |
|
Focus mode |
Manual operation |
Manual operation |
|
Detection Range |
2.2km (vehicle) |
2.6km (vehicle) |
|
Image Display |
||
|
Screen Type & size |
AMOLED, 0.39 inch |
AMOLED, 0.39 inch |
|
Resolution |
1024×768 |
1024×768 |
|
Eye relief |
50mm |
50mm |
|
Exit pupil |
6mm |
6mm |
|
Brightness Adjustment |
Support |
Support |
|
Palettes |
White Hot / Black Hot / Red Hot / Fusion |
|
|
Digital Zoom |
1×; 2×; 4× |
1×; 2×; 4× |
|
Power Supply |
||
|
Battery type & number |
2 Lithium batteries |
2 Lithium batteries |
|
Battery parameter |
18650（3400mah） |
18650（3400mah） |
|
External power supply |
5V/2A USB Type-C |
5V/2A USB Type-C |
|
Power Dissipation |
≤2.2W |
≤2.2W |
|
Battery Operating time |
≥10h （25℃） |
≥10h （25℃） |
|
Peripheral |
||
|
Electronic compass |
Support |
Support |
|
Attitude sensor |
Support |
Support |
|
GPS |
Support |
Support |
|
WIFI |
2.4G |
2.4G |
|
Storage |
Built-in EMMC (32GB) |
Built-in EMMC (32GB) |
|
Distance Measurement |
Rangefinder，905nm |
Rangefinder，905nm |
|
Ranging distance & accuracy |
1Km，±1m |
1Km，±1m |
|
General |
||
|
Interface |
USB Type-C |
USB Type-C |
|
Protection level |
IP67 |
IP67 |
|
Shock resistance |
1200g/0.4ms |
1200g/0.4ms |
|
Working temperature |
-30°C to +60°C |
-30°C to +60°C |
|
Dimension |
245mm×60mm×90mm (With lens cover) |
245mm×60mm×90mm (With lens cover) |
|
Weight |
≤890g (With Battery, 710g (Without Battery) |
≤890g (With Battery, 710g (Without Battery) |
