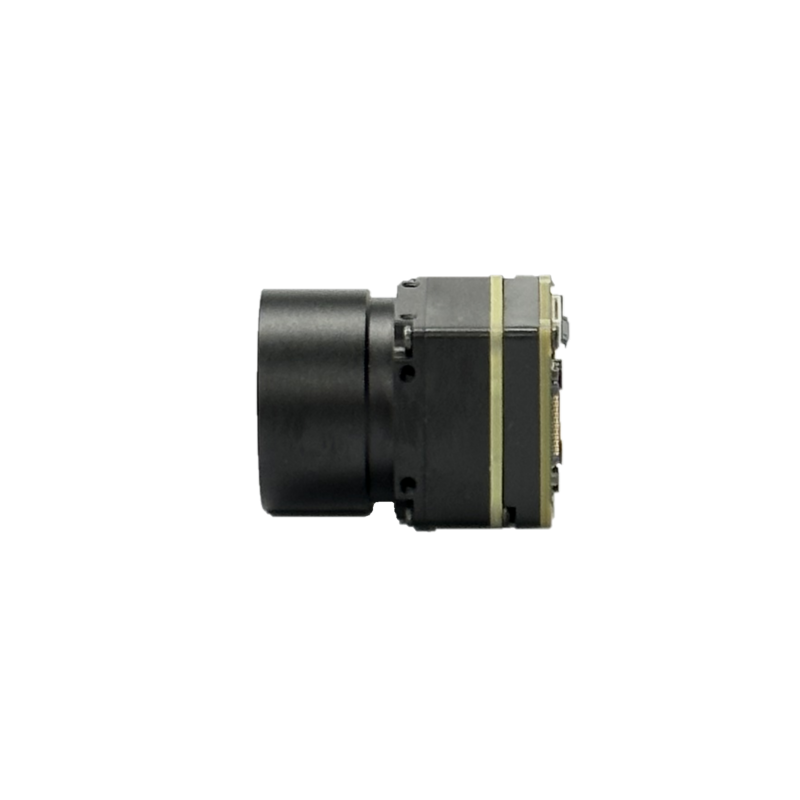

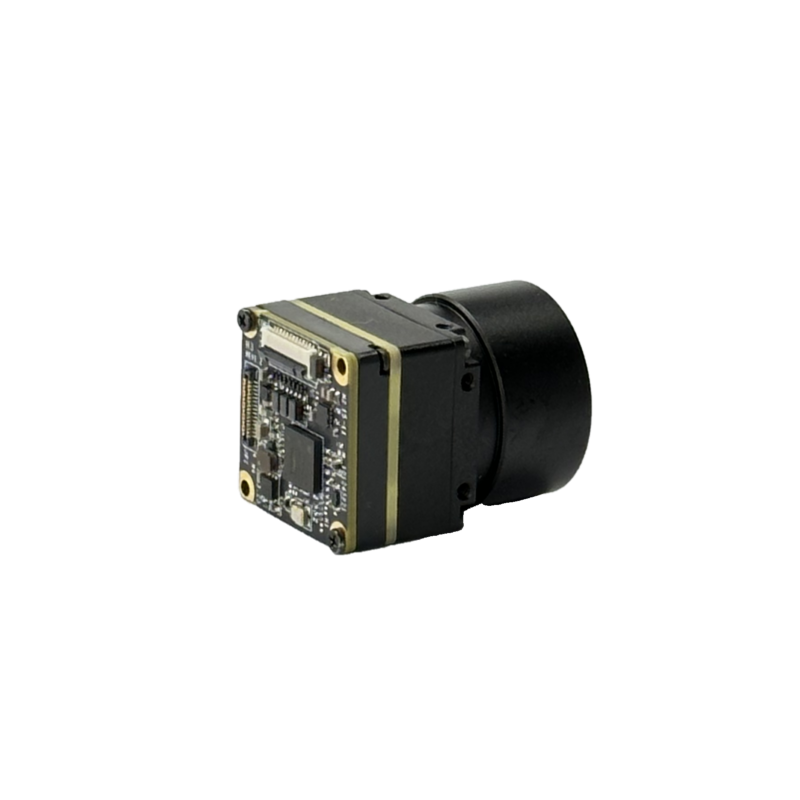

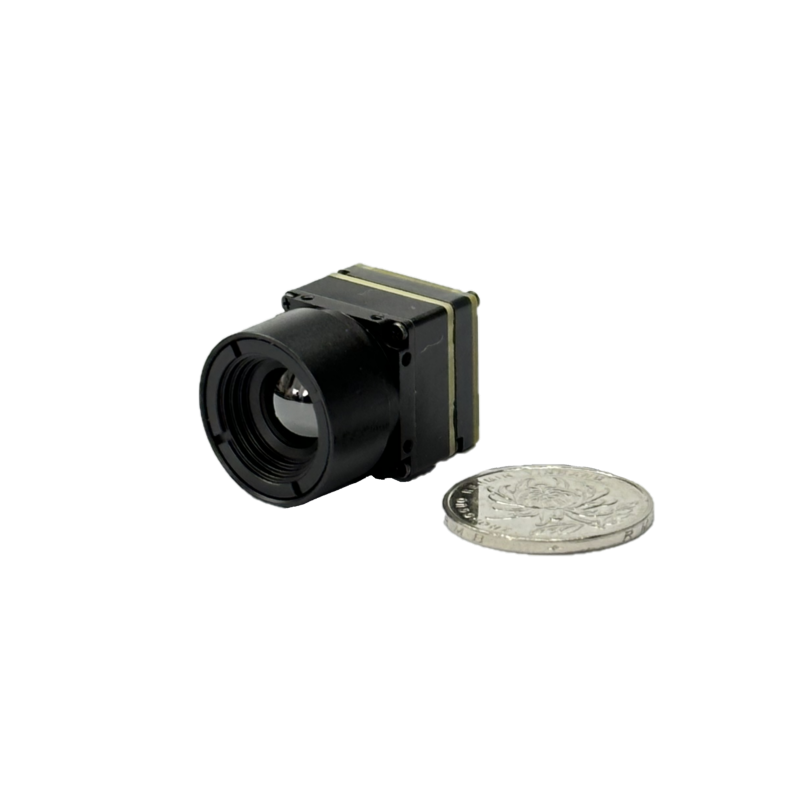

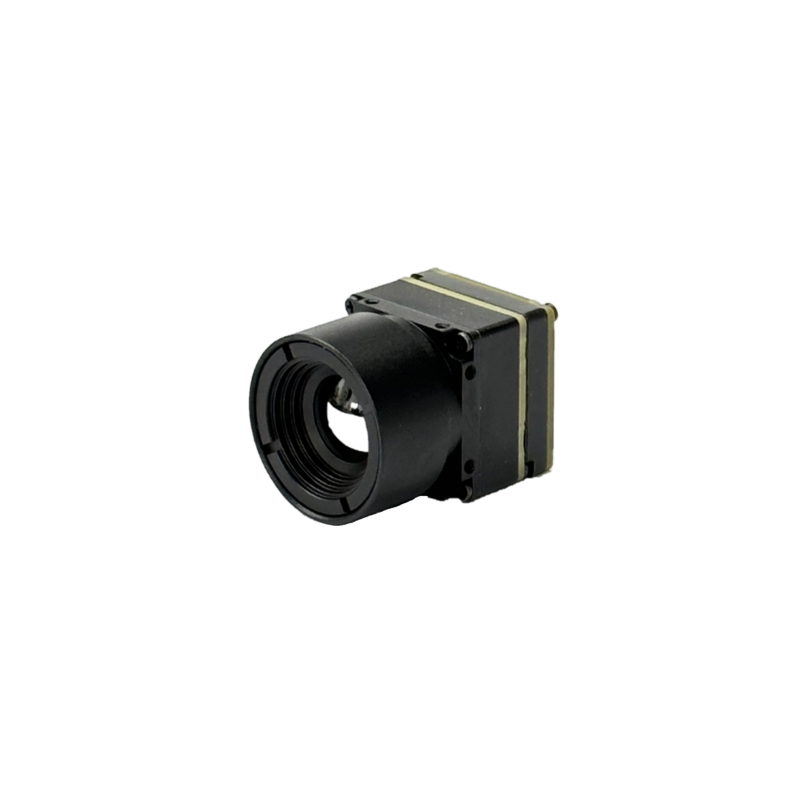

UAV Mini Thermal Camera Module

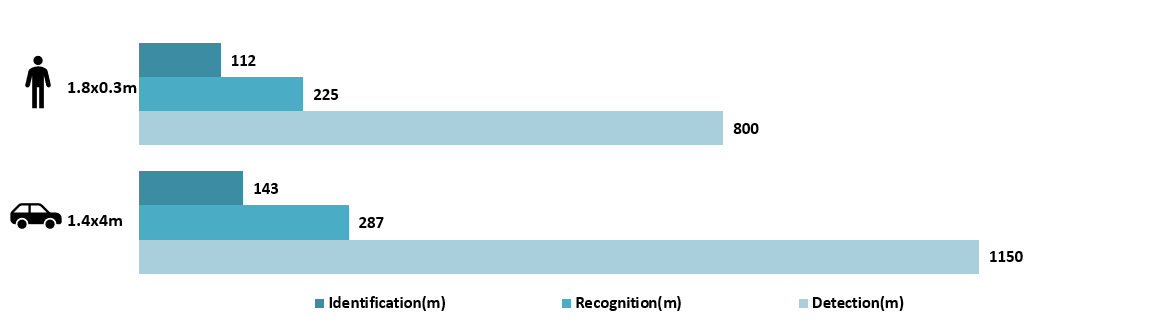

DRI
Specification
|
Thermal |
|
|
Sensor type |
VOx |
|
Maximum image size |
384 × 288 |
|
Pixel size |
12μm |
|
Response band |
8~14 μm |
|
NETD |
≤35mK(@25 °C,F#1.0) |
|
Lens |
9mm |
|
field of view |
28.7°(H) x 21.7°(V)，36.4°(D) |
|
Image |
|
|
display resolution |
384 × 288 |
|
Frame rate |
30Hz |
|
mirror |
support |
|
Dimming |
support |
|
False color mode |
Supports 15 modes including white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, etc. |
|
Contrast adjustment |
support |
|
System Function |
|
|
Interface |
USB2.0 |
|
General |
|
|
storage temperature |
-45 °C ~ + 75 °C |
|
Storage humidity |
＜30%RH |
|
Operating temperature |
-40 °C~70 °C |
|
Working humidity |
＜30%RH |
|
weight |
≤23g |
|
size |
29.8mm*Φ21.8 |
|
power |
≤0.7W |
|
power input |
DC 5V±5% |
|
Temperature Measurement |
|
|
Temperature measurement rules |
Normal mode: full screen temperature measurement |
|
data output |
Expert mode: 10 points, 10 boxes, 1 line, a total of 21 temperature measurement rules |
|
Temperature measurement range |
Support full-screen temperature data output |
|
Temperature measurement distance |
-20 °C~+150°C and 100 °C~550 °C |
|
Temperature measurement accuracy |
3-18m can be set |
