Tri Spectrum Middle Distance PTZ Camera

Specifications

DRI

Type

Human 1.8*0.5m

Vehicle 2.3*2.3m

Vessel 4*10m

Fire 2*2m

Detection

4.8km

13km

33km

10km

Recognition

2.5km

3.4km

8.33km

Identification

1.3km

1.7km

4.16km

Visible

Camera

Lens

Image Sensor

1/2.8” Progressive Scan CMOS

Video Output

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Minimum Illumination

Color:0.001 Lux @ (F1.8, AGC ON); B/W:0.0005Lux @ (F1.8, AGC ON)

Focal Length

6.1~317m, 52X Optical Zoom

Aperture Range

F1.4-F4.7

Horizontal Field of View

61.8-1.6°（wide-tele）

Minimum Working Distance

100mm-2000mm (wide-tele)

Thermal Camera

Detector

640*512 VOx

Pixel Pitch

12μm

Lens

15~150mm 10X optical zoom, Auto focus

FOV (640*512)

28.7° x 23.1°~2.9° x 2.3°

NETD

≤35 mK @F1.0, 300K

Spectral Range

8 ~ 14μm, LWIR

Focusing range

15mm：5M—∞ / 150mm：10M—∞

Network

Storage Function

Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF (PROFILE S, PROFILE G, PROFILE T)

PTZ

Rotation range

Horizontal: 0~360° continuous rotation; Vertical: +90°~-90°

Spinning speed

Horizontal: 0.13~180°/s; Vertical: 0.09~110°/s

Preset position accuracy

±0.01°

Number of preset positions

255 (customizable)

Other

Support cruise scan/auto scan; support query angle return function (optional real-time angle return)

Vertical Stability dynamic accuracy

≤0.3°

Communication

Pelco D RS485, Ethernet RJ45

Wiper

Auto Wiper Optional

General

Power supply mode

DC24V±10%

Power consumption

Max <55W, average <12W

Working temperature

 -40℃～+65℃

Working humidity

<90%RH

Protection grade

IP67

EMC level

Power 8000V

Anti-salt fog level

PH value is 6.5～7.2, continuous spraying for 48 hours, no change on the surface

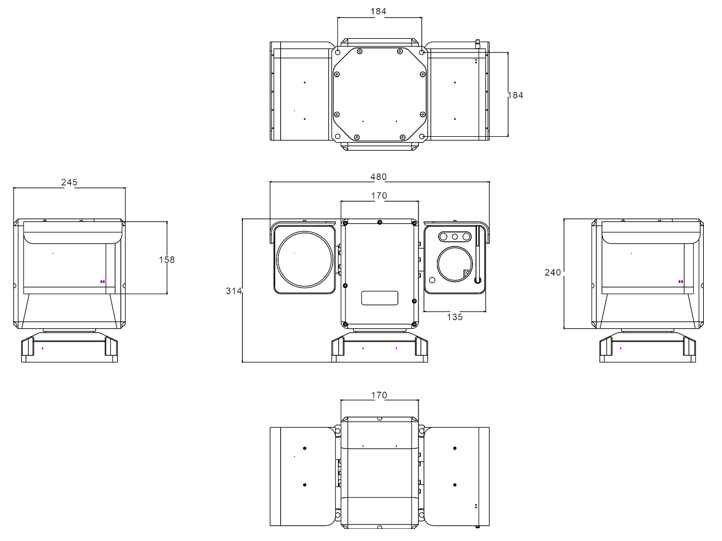

Dimension

480mm*245mm*314mm

Product weight

＜20kg
