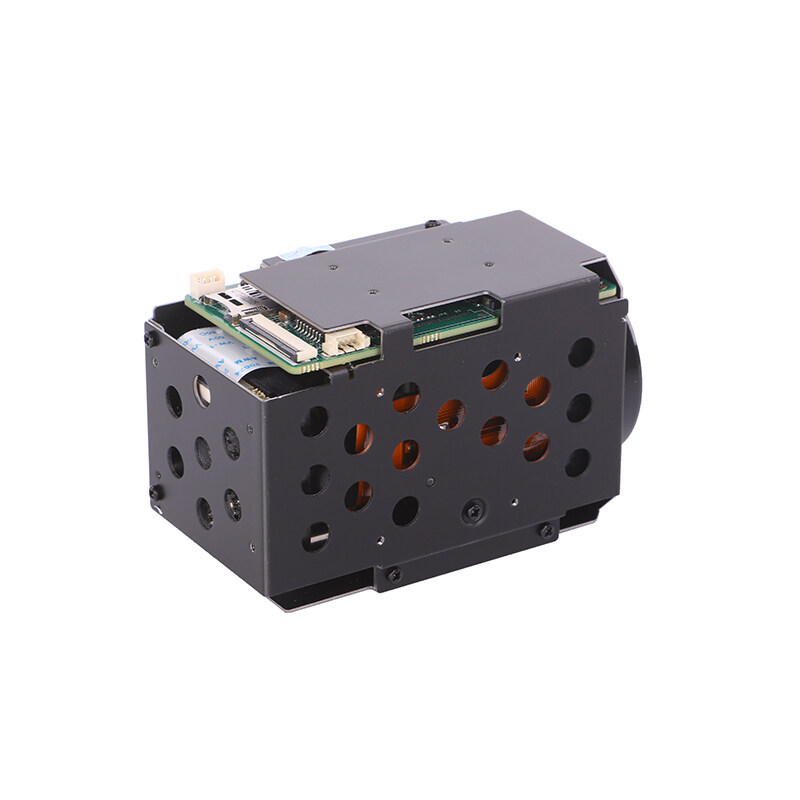

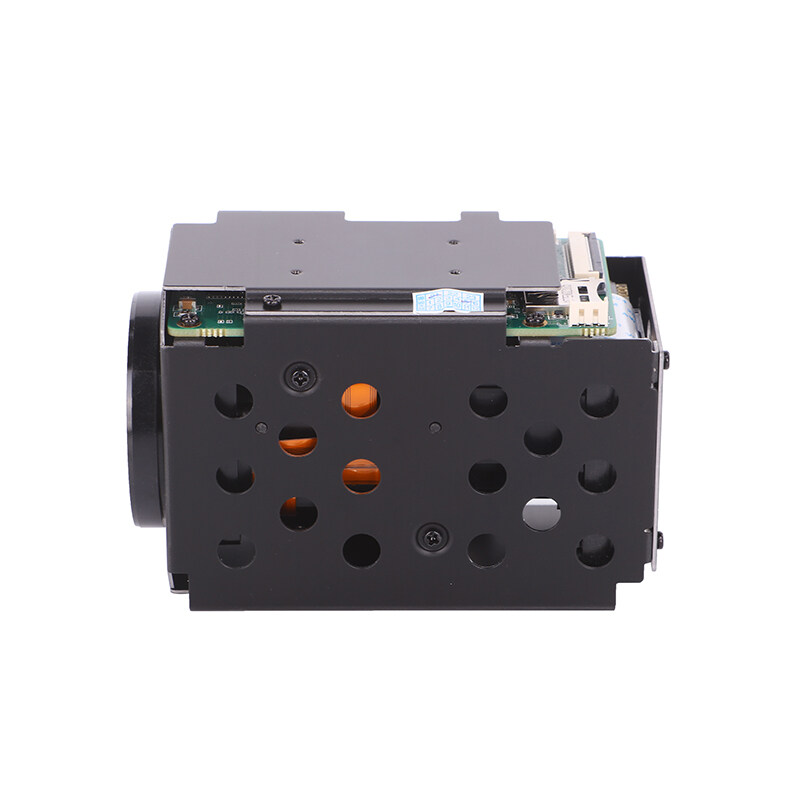

Special Design for Ip66 Wifi Ptz Camera Module - 2MP 33x Global Shutter Network Zoom Camera Module – Huanyu Detail:

Application

Rolling shutter compare with Global shutter

Rolling Shutter scan way as below

Specifications

Specifications
Camera	Image Sensor	1/2.8” Global Shutter CMOS
	Minimum Illumination	Color:0.5 Lux @ (F1.5,AGC ON); B/W:0.1Lux @ (F1.5,AGC ON)
	Shutter	1/25s to 1/100,000s；Supports delayed shutter
	Aperture	DC drive
	Day/Night Switch	ICR cut filter
Lens	Focal Length	4.8~158mm, 33x Optical Zoom
	Aperture Range	F1.5-F4.0
	Horizontal Field of View	58.9-2.4°(wide-tele)
	Minimum Working Distance	100mm-1500mm (wide-tele)
	Zoom Speed	Approximately 3.5s (optical, wide-tele)
Compression Standard	Video Compression	H.265 / H.264 / MJPEG
	H.265 Type	Main Profile
	H.264 Type	BaseLine Profile / Main Profile / High Profile
	Video Bitrate	32 Kbps~16Mbps
	Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
	Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image（Maximum Resolution：1600×1300）	Main Stream	50Hz: 50fps (1600×1300, 1280 × 960, 1280 × 720);60Hz: 60fps (1600×1300, 1280 × 960, 1280 × 720)
	Third Stream	50Hz: 50fps (704 ×576); 60Hz: 60fps(704 ×576)
	Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse
	BLC	Support
	Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
	Focus Mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
	Area Exposure / Focus	Support
	Defog	Support
	Image Stabilization	Support
	Day/Night Switch	Automatic, manual, timing, alarm trigger
	3D Noise Reduction	Support
	Picture Overlay Switch	Support BMP 24-bit image overlay, customizable area
	Region of Interest	Support three streams and four fixed areas
Network	Storage Function	Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support)
	Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
	Interface Protocol	ONVIF(PROFILE S,PROFILE G, PROFILE T)
Interface	External Interface	36pin FFC (Network port, RS485, RS232, SDHC, Alarm In/Out Line In/Out, power)
General	Working Temperature	-30℃~60℃, humidity≤95%(non-condensing)
	Power supply	DC12V±25%
	Power consumption	2.5W MAX(IR, 4.5W MAX)
	Dimensions	97.5×61.5x50mm
	Weight	268g

Dimension
