High-Resolution 640x480 Thermal Camera Module | Infrared Innovation

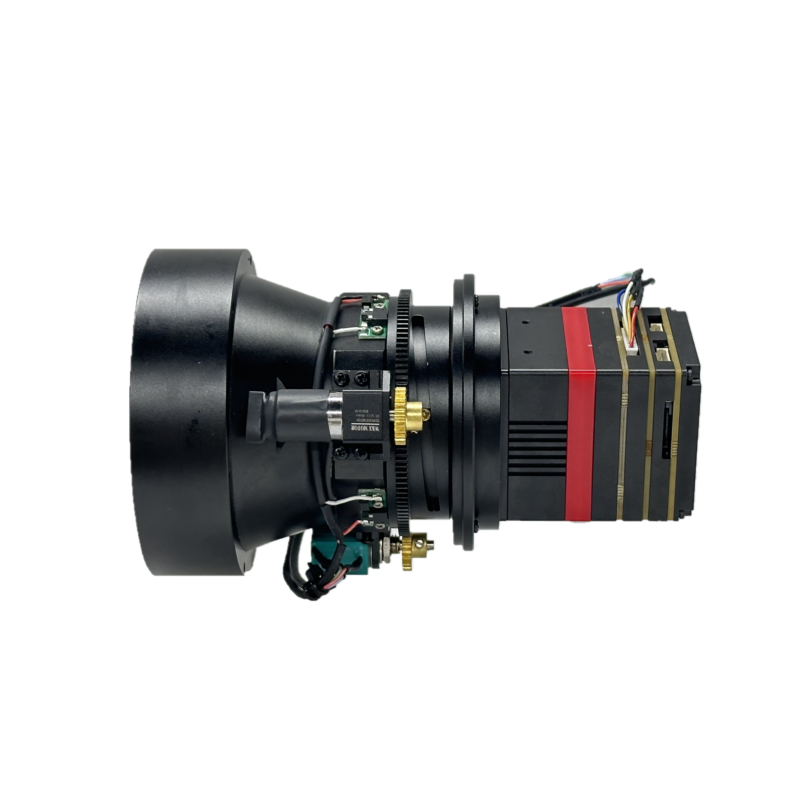

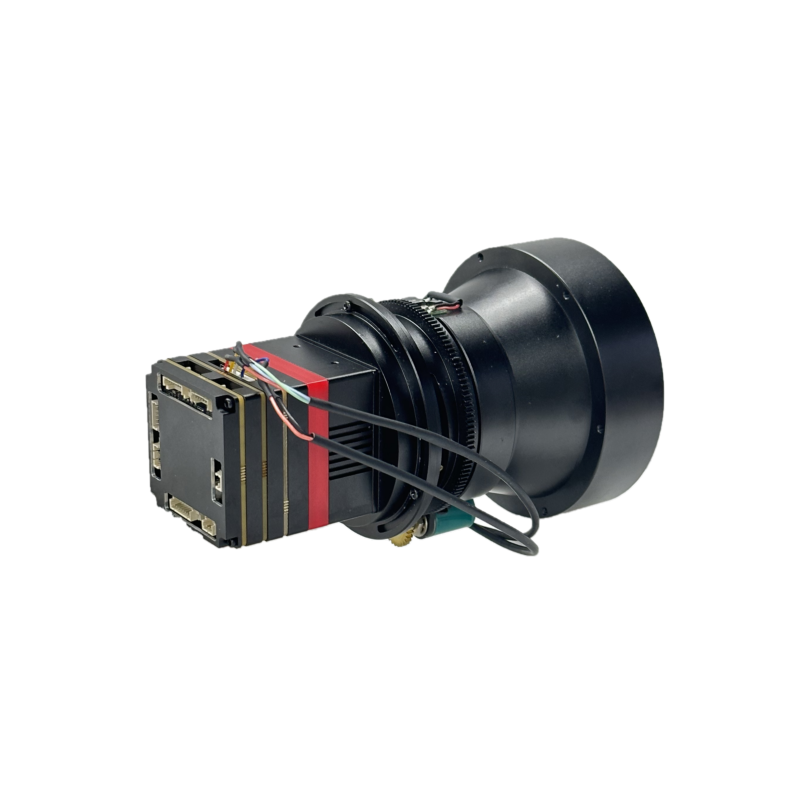

In the cutting-edge field of surveillance and monitoring, the 75mm Electric Focusing Lens 640\*512 Thermal Camera Module stands out as a beacon of innovation. Brought to you by Univision, a leading name in advanced imaging solutions, this infrared camera module is designed to redefine the standards of precision, reliability, and efficiency. At the heart of this state-of-the-art thermal camera module lies a VOx Uncooled Thermal Detector, a marvel in thermal imaging technology. With a resolution of 640x480 and a pixel size of 12µm , this detector captures detailed thermal images with remarkable clarity. Operating within the spectral range of 8-14µm , the module excels in detecting infrared radiation, translating into images that reveal what the naked eye cannot see. The sensitivity of the camera is unparalleled, boasting a NETD (Noise Equivalent Temperature Difference) of ≤35 mK at F1.0 , which ensures that even the slightest variations in temperature are accurately captured. This level of sensitivity is crucial for applications ranging from security surveillance, where intruders can be detected in total darkness, to industrial inspections, where overheating components can be identified before they fail.

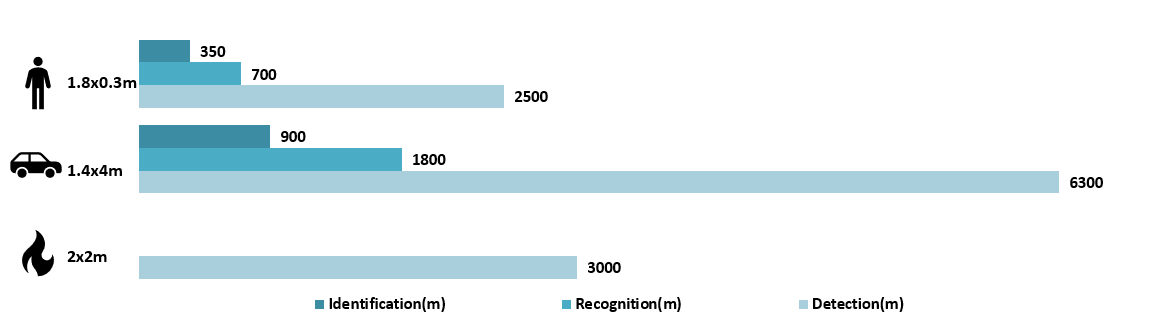

DRI

Specification

Parameters
Model	UV-TH61075EW
Detecor
Detector type	VOx Uncooled thermal Detector
Resolution	640x480
Pixel size	12μm
Spectral range	8-14μm
Sensitivity (NETD)	≤35 mK @F1.0, 300K
Lens
Lens	75mm Electric Focusing Zoom F1.0
Focus	Auto Focus
Focusing range	5m~∞
FoV	5.8°x4.6°
Network
Network protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Video compression standards	H.265 / H.264
Interface Protocol	ONVIF(PROFILE S,PROFILE G) , SDK
Resolution	25fps (640*480)
Image settings	Brightness, contrast, and gamma are adjustable through the client or browser
False color mode	11 modes available
Image enhancement	support
Bad pixel correction	support
Image noise reduction	support
Mirror	support
Interface
Network Interface	1 100M network port
Analog output	CVBS
Communication serial port	1 channel RS232, 1 channel RS485
Functional interface	1 alarm input/output, 1 audio input/output, 1 USB port
Storage function	Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported)
Enviroment
Operating temperature and humidity	-30℃~60℃, humidity less than 90%
Power supply	DC12V±10%
Power consumption	/
Size	56.8*43*43mm
Weight	121g(without lens)

---

Beyond its technical specifications, the 75mm Electric Focusing Lens further enhances the module's capabilities. This feature allows for rapid adjustments in focus, providing crisp, clear images across varying distances – a critical functionality in dynamic environments where subjects of interest are constantly moving. In conclusion, Univision's 75mm Electric Focusing Lens 640\*512 Thermal Camera Module represents the pinnacle of infrared camera module technology. It's not just a tool but a gateway to uncharted territories, offering users the ability to see the world in a new light and discover what lies beyond the visible spectrum. Whether for security, industrial, or scientific applications, this thermal camera module defines the future of infrared imaging.
