Factory Supply Laser illuminator – 800m Distance 850nm Laser Illuminator – Huanyu
Factory Supply Laser illuminator – 800m Distance 850nm Laser Illuminator – Huanyu Detail:
Product Description
- Optical design Patent, high efficiency, conversion rate of photoelectric range up to 90%.
- Ultra-low power, precision current design, less heat, less heat than similar products saving up to 20~50%.
- Smart temperature protection, convector air-cooled coaxial design to ensure long continuous operation within the whole temperature range still working.
- Universal mounting interface and installation location, easy to install in a variety of monitoring equipment.
Specification
Parameters | Values and Description |
| Model | UV-LS800-VP |
| Lighting Distance | 800m |
| Wavelength | 850±10nm |
| Laser Chip Power | 4.2±0.3W |
| Output power | 3.9±0.3W· |
| Lighting Angles | Minimum Angle 2.0°; Lighting Distance >800m; Spot Diameter <28m;Near Angle 70°; Lighting Distance >80m |
| Working Voltage | DC12V±10% |
| Power Consumption | ＜20W |
| Control Mode | TTL232485 |
| Communication Mode | UART_TTL |
| Communication Protocol | Pelco_D（Baud Rate 9600bps by default or 4800bps / 2400bps） |
| Storage Temperature | -40℃～+80℃ |
| Operating Temperature | -20℃～+50℃ |
| Dimension | 55mmx57mmx100mm |
| Weight | About 230g |

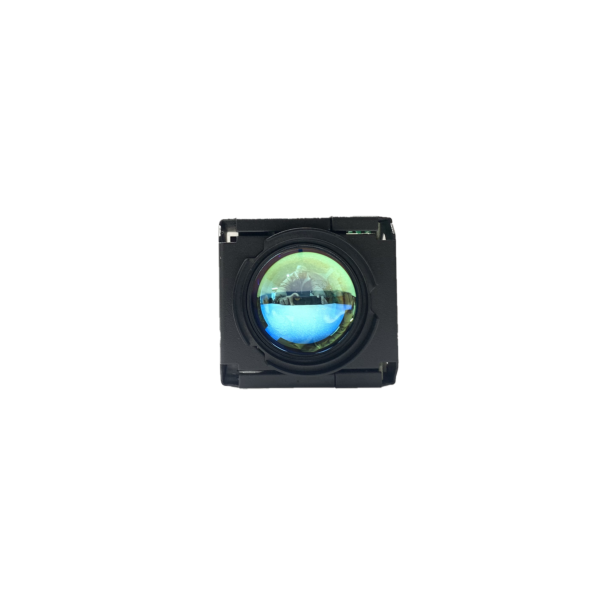

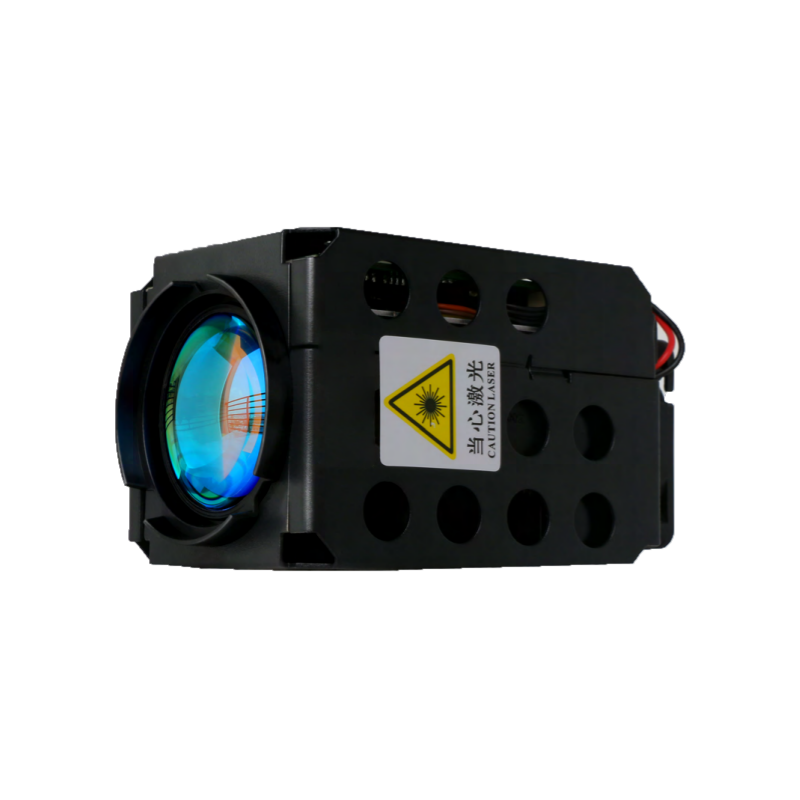

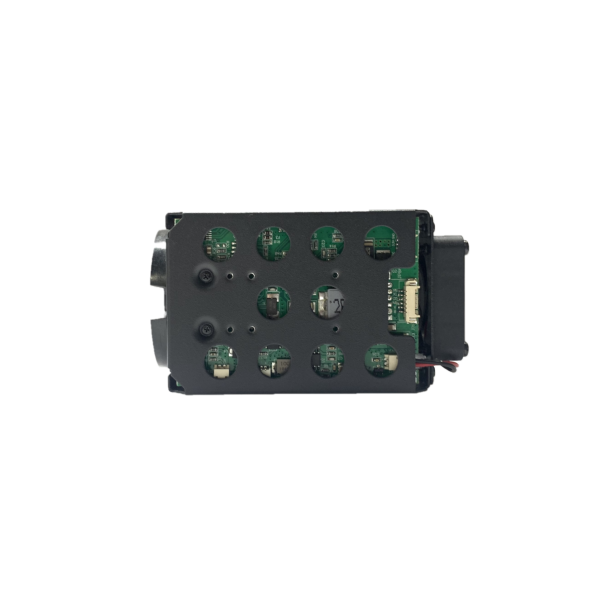

Product detail pictures:
Related Product Guide:
Sticking to the principle of "Super High-quality, Satisfactory service" ,We are striving to generally be a very good business partner of you for Factory Supply Laser illuminator – 800m Distance 850nm Laser Illuminator – Huanyu, The product will supply to all over the world, such as: Brazil, Slovak Republic, Turkmenistan, The design, processing, purchasing, inspection, storage, assembling process are all in scientific and effective documentary process , increasing usage level and reliability of our brand deeply, which makes us become superior supplier of the four major product categories shell castings domestically and obtained the customer's trust well.
