Factory Supply Laser illuminator – 3000m Distance 808nm Laser Illuminator – Huanyu Detail:

Description

Infrared laser night vision intelligent matching remote control monitoring system (software copyright)
Low power ultra long distance infrared laser night vision lighting system (software copyright)
Ultra long distance intelligent infrared laser night vision lighting system (software copyright)
1000m intelligent infrared laser night vision lighting system (software copyright)
Long distance infrared laser lamp system software (software copyright)
Medium and short distance infrared laser lamp system software (software copyright)
Intelligent infrared laser night vision lighting system (software copyright)

Specification

Parameters	Values and Description
Model	UV-LS3000-M	UV-LS3000-HD
Lighting Distance	3000m
Wavelength	808±5nm	808±10nm
Laser Chip Power	16W
Output power	>20W·	>18
Lighting Angles	Minimum Angle 0.3°; Lighting Distance >3000m; Spot Diameter <16m; Near Angle 35°; Lighting Distance >100m; Spot Diameter <58m;	Minimum Angle 0.3°; Lighting Distance >3000m; Spot Diameter <16m; Near Angle 50°; Lighting Distance >100m; Spot Diameter
Working Voltage	DC24V±10%, 2.3A±0.3A
Power Consumption	＜28W	<60W
Control Mode	TTL232/485
Communication Mode	UART_TTL, RS485
Communication Protocol	Pelco_D（Baud Rate 9600bps by default or 4800bps / 2400bps）
Storage Temperature	-40℃～+85℃
Operating Temperature	-35℃～+55℃
Dimension	3109878mm	444136123 mm
Weight	About 1700g	About 4000g

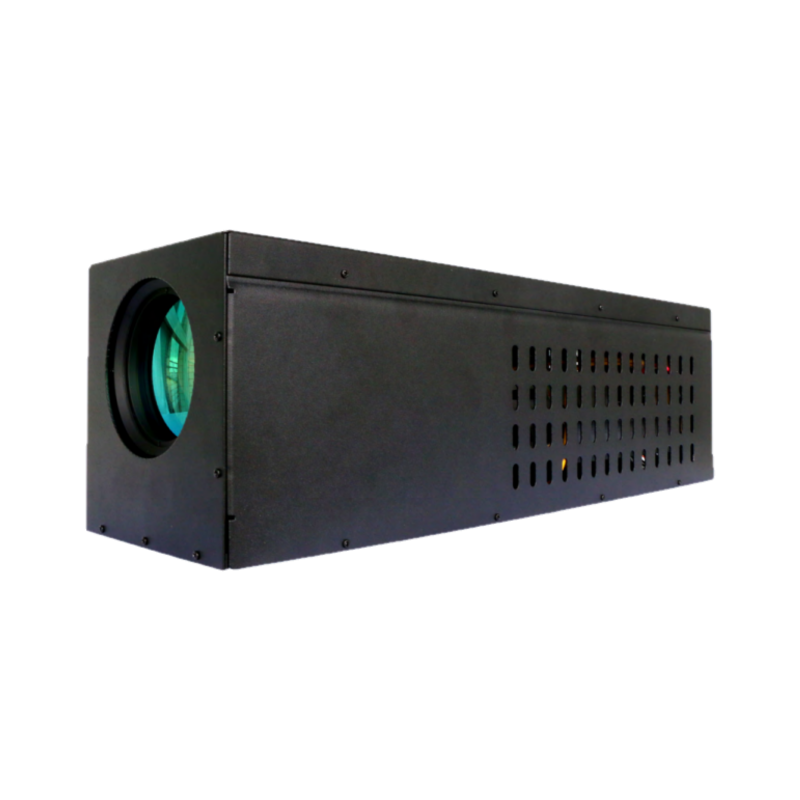

Product detail pictures:
