Factory Supply Laser illuminator – 2000m Distance 808nm Laser Illuminator – Huanyu
Factory Supply Laser illuminator – 2000m Distance 808nm Laser Illuminator – Huanyu Detail:
Market Applications
The 2000 m infrared laser light is a close series infrared laser lights with highly intelligent, high-performance, high-quality, high security and high starting point. Mainly used in video surveillance auxiliary lighting at night, so that video surveillance equipment can get crisp and clear, high-quality night vision monitor screen in the dark( even in total darkness no light conditions).
The 2000m infrared laser is suitable for all kinds of security monitoring systems, complete night vision illumination distance and angle, applicable to all security monitoring equipment on the market.
Standard Product——from 300 meters to 4km distance,
Lighting angle: 0.3°~70°.
Custom Made——from 500m to 20km distance
Best night vision illumination distance range from 30 meters to 2000 meters, it can meet the professional applications of high-definition night vision surveillance quality requirements, such as: safe city, intelligent transportation, automotive systems, prisons, border Haiphong, forest fire prevention, oil depots, large-scale plant, the security sector, ecological reserves, mining energy, water power, airports, ports, administrative law enforcement, fishery and maritime surveillance and so on.
Specification
Parameters | Values and Description | |
| Model | UV-LS2000-S | UV-LS2000-M |
| Lighting Distance | 2000m | |
| Wavelength | 808±5nm | 808±10nm |
| Laser Chip Power | 16W | |
| Output power | >13W | >16W |
| Lighting Angles | Minimum Angle 0.8°; Lighting Distance >2000m; Spot Diameter <21m; Near Angle 72°; Lighting Distance >100m; Spot Diameter <58m; | Minimum Angle 0.3°; Lighting Distance >2000m; Spot Diameter <10.5m; Near Angle 72°; Lighting Distance >100m; Spot Diameter |
| Working Voltage | DC12V±10%, 2.1A±0.2A | |
| Power Consumption | ＜28W | <50W |
| Control Mode | TTL232/485 | |
| Communication Mode | UART_TTL, RS485 | |
| Communication Protocol | Pelco_D（Baud Rate 9600bps by default or 4800bps / 2400bps） | |
| Storage Temperature | -35℃～+55℃ | |
| Operating Temperature | -40℃～+70℃ | |
| Dimension | 147mm*64mm*63mm | 310*98*78mm |
| Weight | About 550g | |

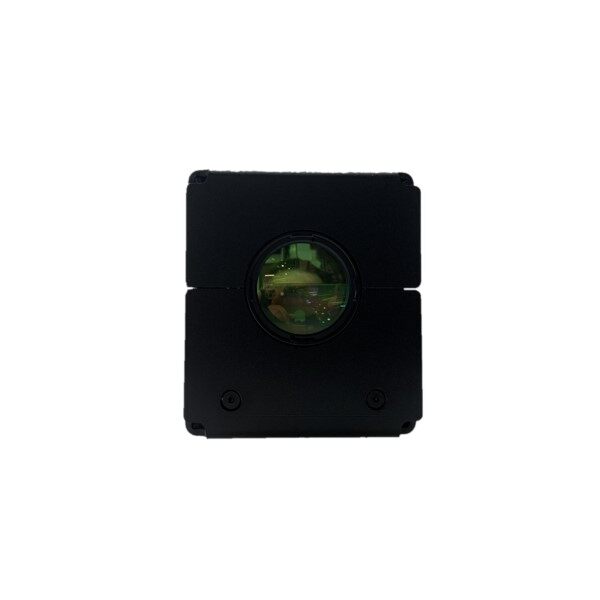

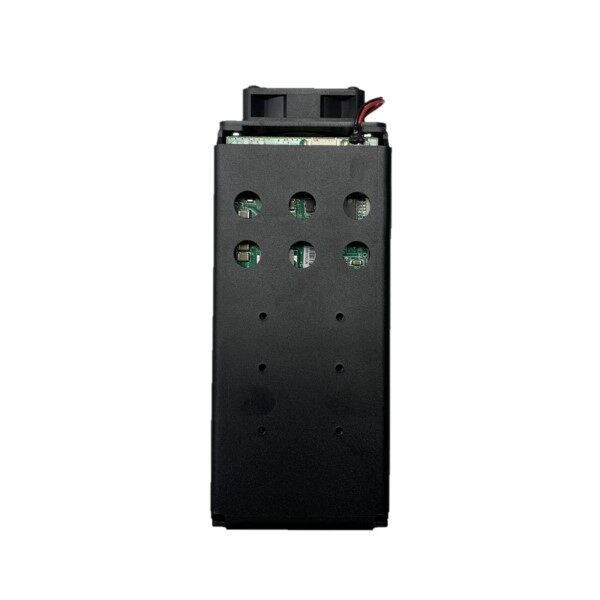

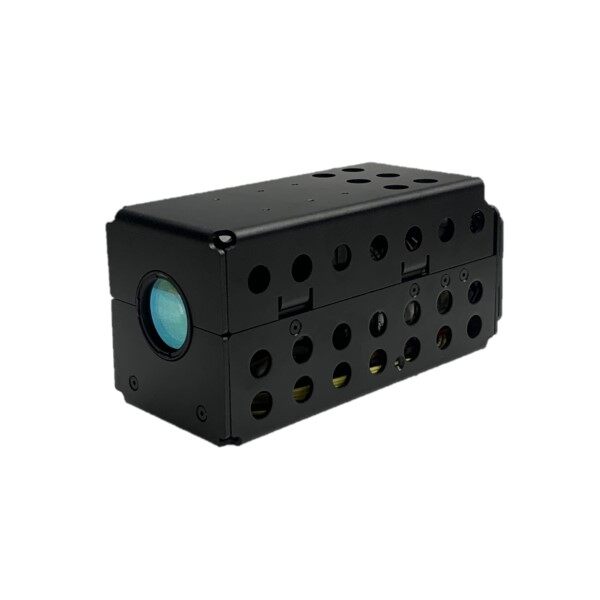

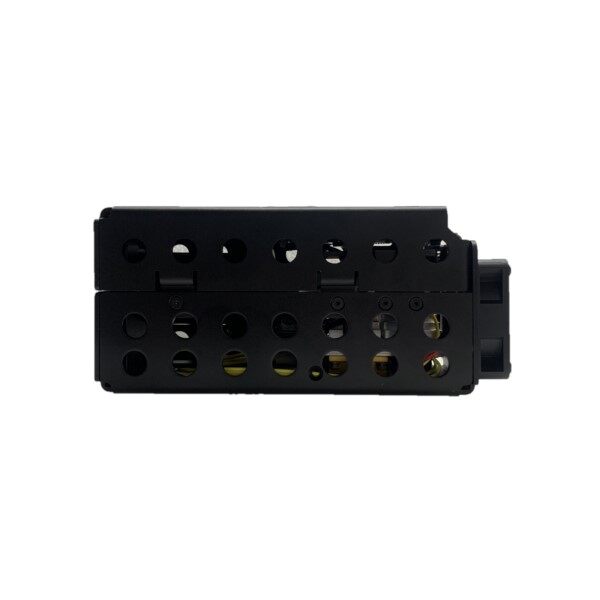

Product detail pictures:
Related Product Guide:
We not only will try our greatest to present fantastic expert services to each purchaser, but also are ready to receive any suggestion offered by our prospects for Factory Supply Laser illuminator – 2000m Distance 808nm Laser Illuminator – Huanyu, The product will supply to all over the world, such as: Durban, Malaysia, Pakistan, Furthermore, all of our items are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. If you are interested in any of our goods, please don't hesitate to contact us. We will do our best to meet your needs.
