We have now sophisticated machines. Our solutions are exported to the USA, the UK and so on, enjoying a great reputation amid consumers for 4mp 6x Ip Zoom Camera Module , 2mp 25x Ip Zoom Camera Module , 4mp Drone Camera Module , To achieve reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas customers, fast delivery, the best quality and long-term cooperation.

factory Outlets for 1080p Ptz Ip Camera Module - 4MP 10X NDAA Compliant Network Zoom Camera Module – Huanyu Detail:

Product Description

10x Optical Zoom, 16x Digital Zoom
Support Motion Detection, etc.
Support 3-stream Technology, Each Stream Can Be Independently Configured With Resolution And Frame Rate
ICR Automatic Switching, 24 Hours Day and Night Monitor
Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
Support 255 Presets, 8 Patrols
Support Timed Capture and Event Capture
Support One-click Watch and One-click Cruise Functions
Support One Channel Audio Input and Output
Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
Support 256G Micro SD / SDHC / SDXC
Support ONVIF
Optional Interfaces for Convenient Function Expansion
Small Size and Low Power, Easy to Inset PT Unit, PTZ

Application

4MP 10X NDAA Compliant Network Zoom Camera Module integrated HD network camera movement module, using H.265 high performance video image processing engine, supports up to Full HD (2560 x 1440) real-time video image output. Integrated 10X optical zoom aspherical lens H full-function output interface, unified coding IP output, used for rapid integration of variable speed ball machine, infrared ball machine, integrated head and other products. It is especially suitable for users who are sensitive to cost and have a short integration time. It can provide low bit stream and cost-effective HD video images and overall solutions for security monitoring sites such as parks, buildings and residential areas.

Specification

Specifications
Camera	Image Sensor	1/2.8” Progressive Scan CMOS
	Minimum Illumination	Color:0.001 Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON)
	Shutter	1/25s to 1/100,000s；Supports delayed shutter
	Aperture	DC drive
	Day/Night Switch	ICR cut filter
	Digital zoom	16X
Lens	Focal Length	4.8-48mm, 10x Optical Zoom
	Aperture Range	F1.7-F3.1
	Horizontal Field of View	62-7.6°（wide-tele）
	Minimum Working Distance	1000m-2000m (wide-tele)
	Zoom Speed	Approximately 3.5s(optical lens, wide-tele)
Image（Maximum Resolution：*19201080**）	Main Stream	50Hz: 25fps (2560×1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560×1440, 1920 × 1080, 1280 × 960, 1280 × 720)
	Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
	BLC	Support
	Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
	Focus Mode	Auto / One step / Manual/ Semi-Auto
	Area Exposure / Focus	Support
	Optical Defog	Support
	Image Stabilization	Support
	Day/Night Switch	Automatic, manual, timing, alarm trigger
	3D Noise Reduction	Support
Network	Storage Function	Support Micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)
	Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
	Interface Protocol	ONVIF(PROFILE S,PROFILE G),GB28181-2016
Interface	External Interface	36pin FFC (Network port, RS485, RS232, CVBS,SDHC, Alarm In/Out Line In/Out, power),LVDS
GeneralNetwork	Working Temperature	-30℃~60℃, humidity≤95%(non-condensing)
	Power supply	DC12V±25%
	Power consumption	2.5W MAX(4.5W MAX)
	Dimensions	62.5x49x53.1mm, 61.7×48.2×50.6mm(camera stand)
	Weight

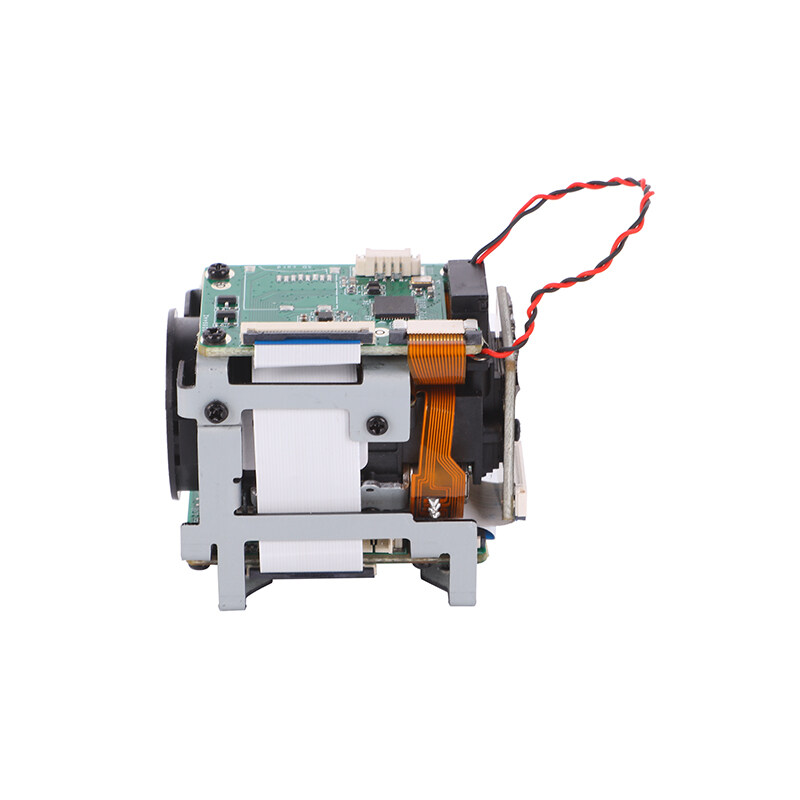

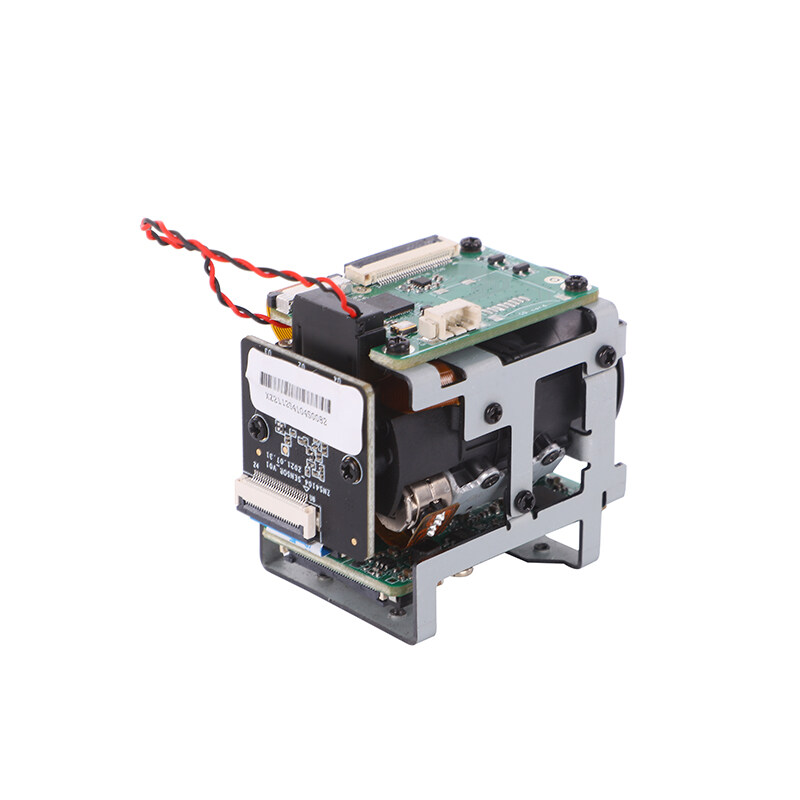

Product detail pictures:
