Factory Free sample High Range Drone Camera Module - 4MP 4x UAV Mini Zoom Camera Module – Huanyu Detail:
Product Description
- Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
- Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
- Support 255 Presets, 8 Patrols
- Support Timed Capture and Event Capture
- Support One-click watch and One-click Cruise Functions
- Support One Channel Audio Input and Output
- Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
- Support 256G Micro SD / SDHC / SDXC
- Support ONVIF
- Optional Interfaces for Convenient Function Expansion
- Small Size and Low Power, Easy to Inset PT Unit, PTZ
With the support of 4 MP CMOS sensor and 4x lens and with the excellent algorithm independently developed by our professional team, this mini module can be competent for the reconnaissance of various UAVs, which is of great procurement value both for military and civil use.
Solution
Realize the wide coverage of the monitoring network and monitoring content. The monitoring network should fully cover the key areas of the jurisdiction, and the monitoring content should meet the needs of the main public security services in the key areas; realize the effective connection between public security services and social prevention and control, and meet the security requirements of the monitoring system; Realize the rapid response of monitoring information feedback to ensure the rapid, efficient and safe flow of information; realize resource sharing to meet the command, supervision, and review business needs of the local government and higher-level public security organs; based on resource sharing, realize the new system to the existing system Compatibility, reflecting the advantages of integration, solving the problem of resource integration with digital city construction; based on improving the application level, solving the interconnection and intercommunication of emergency systems such as urban rescue and disaster relief, as well as hotspots and difficulties in the construction of social security prevention and control systems;
Specifications
Specifications | ||
| Camera | Image Sensor | 1/1.8” Progressive Scan CMOS |
| Minimum Illumination | Color:0.0005 Lux @(F1.6,AGC ON);B/W:0.0001Lux @(F1.6,AGC ON) | |
| Shutter | 1/25s to 1/100,000s；Supports delayed shutter | |
| Autoiris | DC | |
| Day/Night Switch | IR cut filter | |
| Digital zoom | 16X | |
| Lens | Focal Length | 8-32mm，4X Optical Zoom |
| Aperture Range | F1.6-F2.5 | |
| Horizontal field of view | 40.26-14.34°（wide-tele） | |
| Minimum Working distance | 100mm-1500mm (wide-tele) | |
| Zoom speed | Approximately 1.5s(optical lens, wide to tele) | |
| Compression Standard | Video Compression | H.265 / H.264 / MJPEG |
| H.265 Type | Main Profile | |
| H.264 Type | BaseLine Profile / Main Profile / High Profile | |
| Video Bitrate | 32 Kbps~16Mbps | |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) | |
| Image（Maximum Resolution：2560*1440） | Main Stream | 50Hz: 25fps (2560*1440，1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560*1440，1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps(704 ×576); 60Hz: 30fps(704 ×576) | |
| Image settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | |
| BLC | Support | |
| Exposure mode | AE / Aperture Priority / Shutter Priority / Manual Exposure | |
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus | |
| Area exposure / focus | Support | |
| Optical fog | Support | |
| Image stabilization | Support | |
| Day/Night Switch | Automatic, manual, timing, alarm trigger | |
| 3D noise reduction | Support | |
| Picture overlay switch | Support BMP 24-bit image overlay, customizable area | |
| Region of interest | ROI supports three streams and four fixed areas | |
| Network | Storage function | Support USB extend Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Smart Calculation | Intelligent computing power | 1T |
| Interface | External Interface | 36pin FFC (Network port、RS485、RS232、SDHC、Alarm In/Out、Line In/Out、power) |
| General | Working Temperature | -30℃~60℃, humidity≤95%(non-condensing) |
| Power supply | DC12V±25% | |
| Power consumption | 2.5W MAX(IR Maximum,4.5W MAX) | |
| Dimensions | 62.7*45*44.5mm | |
| Weight | 110g | |
Dimension

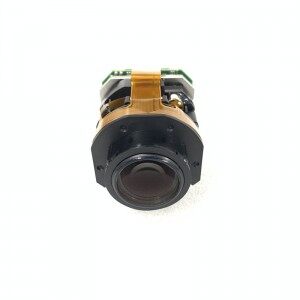

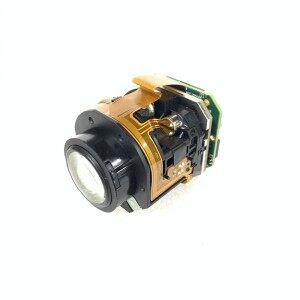

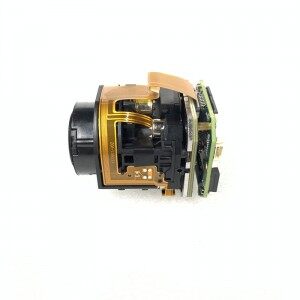

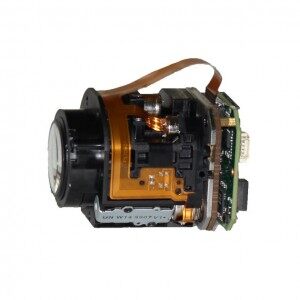

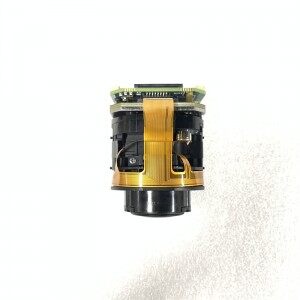

Product detail pictures:
