Excellent quality 2mp 92x Digital Zoom Block Camera - 2MP 25x Digital Zoom Camera Module – Huanyu
Excellent quality 2mp 92x Digital Zoom Block Camera - 2MP 25x Digital Zoom Camera Module – Huanyu Detail:
Product Description
- Support 3D Digital Noise Reduction, High Light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
- Supports Defog, Maximum Improves The Foggy Image
- Support 256G Micro SD / SDHC / SDXC
- Optional Interfaces for Convenient Function Expansion
- Small Size and Low Power, Easy to Inset PT Unit, PTZ
Application:
The 2Mp 25x digital zoom camera is the most classic zoom block camera compatible with SONY IMX385. It can be widely used in vehicle CCTV, video conference, robot, drone and so on. The camera utilizes ultra-low light sensitivity, high signal to noise (SNR) ratio, and uncompressed Full HD streaming at 30 fps. If you are familiar with Sony VISCA protocol, then it is easy to integrate our camera.
Specifications
Specifications | ||
| Camera | Image Sensor | 1/1.8” Progressive Scan CMOS |
| Minimum Illumination | Color:0.0005 Lux @ (F1.5, AGC ON); B/W:0.0001Lux @ (F1.5, AGC ON) | |
| Shutter | 1/25s to 1/100,000s; Support delayed shutter | |
| Aperture | DC drive | |
| Day/Night Switch | ICR cut filter | |
| Digital zoom | 16x | |
| Lens | Focal Length | 6.7-167.5mm, 25x Optical Zoom |
| Aperture Range | F1.5-F3.4 | |
| Horizontal Field of View | 59.8-3°（wide-tele） | |
| Minimum Working Distance | 100mm-1500mm (wide-tele) | |
| Zoom Speed | Approximately 3.5s (optical, wide-tele) | |
| Compression Standard | Video Compression | H.265 / H.264 / MJPEG |
| H.265 Type | Main Profile | |
| H.264 Type | BaseLine Profile / Main Profile / High Profile | |
| Video Bitrate | 32 Kbps~16Mbps | |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) | |
| Image（Maximum Resolution：1920*1080） | Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps (704 ×576); 60Hz: 30fps (704 ×576) | |
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse | |
| BLC | Support | |
| Exposure Mode | AE / Aperture Priority / Shutter Priority / Manual Exposure | |
| Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus | |
| Area Exposure / Focus | Support | |
| Defog | Support | |
| Image Stabilization | Support | |
| Day/Night Switch | Automatic, manual, timing, alarm trigger | |
| 3D Noise Reduction | Support | |
| Picture Overlay Switch | Support BMP 24-bit image overlay, customized area | |
| Region of Interest | Support three streams and four fixed areas | |
| Network | Storage Function | Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Smart Calculation | Smart Calculation | 1T |
| Interface | External Interface | 36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out Line In/Out, power) LVDS |
| General | Working Temperature | -30℃~60℃, humidity≤95%(non-condensing) |
| Power supply | DC12V±25% | |
| Power consumption | 2.5W MAX (ICR, 4.5W MAX) | |
| Dimension | 116.5x57x69mm | |
| Weight | 415g | |
Dimension

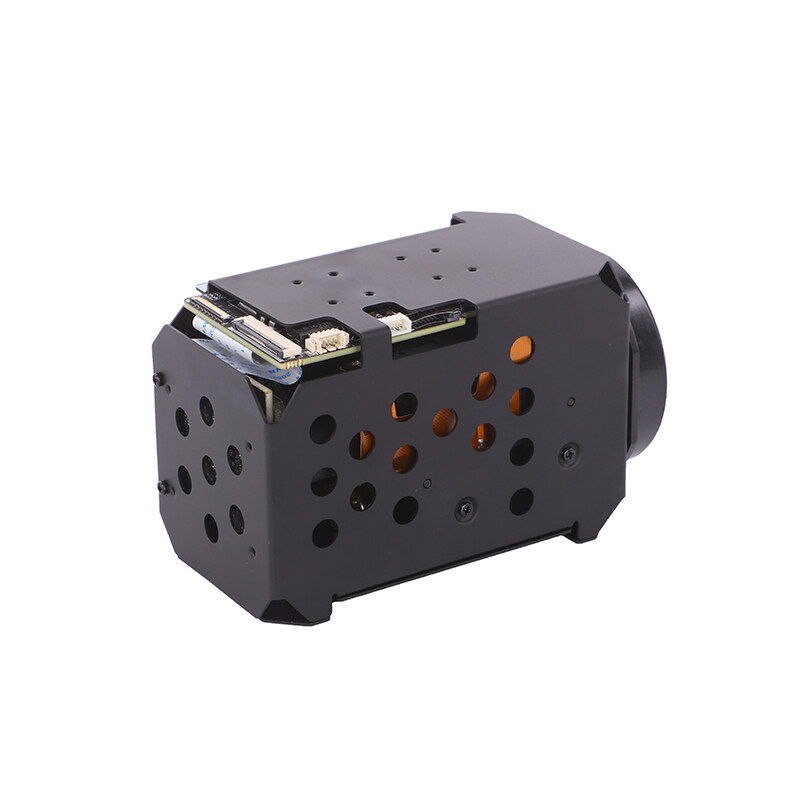

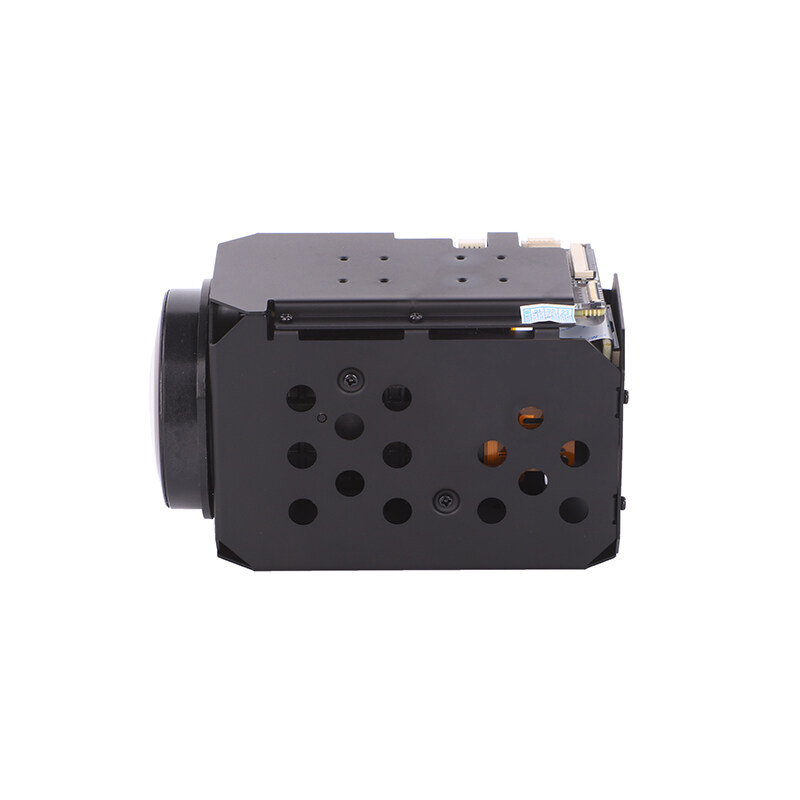

Product detail pictures:
