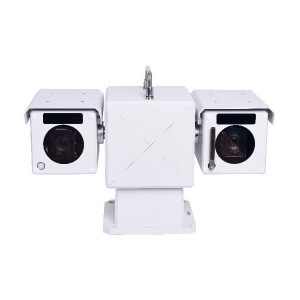

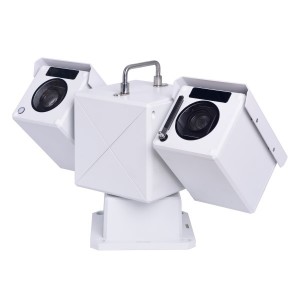

Discount Price China Long Range 52X Optical Zoom Laser Network Vehicle PTZ Camera
abide by the contract”, conforms into the market requirement, joins in the market competition by its good quality also as provides a lot more comprehensive and great company for purchasers to let them turn into huge winner. The pursue from the firm, would be the clients’ gratification for Discount Price China Long Range 52X Optical Zoom Laser Network Vehicle PTZ Camera, We welcome new and old shoppers to make contact with us by telephone or mail us inquiries by mail for foreseeable future company associations and attaining mutual achievements.
abide by the contract”, conforms into the market requirement, joins in the market competition by its good quality also as provides a lot more comprehensive and great company for purchasers to let them turn into huge winner. The pursue from the firm, would be the clients’ gratification for China CCTV Camera, Security Camera, Being guided by customer demands, aiming at improving the efficiency and quality of customer service, we constantly improve items and present more complete services. We sincerely welcome friends to negotiate business and start cooperation with us. We hope to join hands with friends in different industries to create a brilliant future.
Description
Wide rotation range and high operating speed
Vertical pitch angle: -90°~+90°
Horizontal rotation angle: 360° continuous round trip
Horizontal and vertical speed: 30°/s
Precision components for longer life
Worm gear precision machining
With self-locking function
High reliability and long life
Antenna built-in stainless steel handle
Built-in 4G(optional), WI-FI(optional) to prevent transportation and construction damage
Equipped with stainless steel handle, easy to transport and install
Wide operating temperature Intelligent defogging
Built-in temperature control chip and silicone heater
High temperature: 60℃±2℃, low temperature -40℃±2℃
Built-in intelligent defrosting and defogging components
Waterproof and breathable pressure equalization
The protective cover has 2 built-in waterproof and breathable valves
Balanced pressure inside and outside the shield, better sealing performance
Specification
Specifications | ||||
| Part Numbers | UV-PV900DX-2292/2272/2252/4252 | |||
| Camera | Image Sensor | 1/1.8” Progressive Scan CMOS | ||
| Lens | Video Output 4MP(Only for 52x) | 50Hz: 25fps (2560*1440，1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (2560*1440，1920 × 1080, 1280 × 960, 1280 × 720) | ||
| Video Output 2MP | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |||
| Focal Length | 6.1~561mm, 92x | 6.1~440mm,72x | 6.1~317mm,52x | |
| Aperture Range | F1.4-F4.7 | |||
| Horizontal Field of View | 63.39-0.98° (wide-tele) | 63.39-1.26° (wide-tele) | 63.38-1.74°(wide-tele) | |
| Minimum Working Distance | 100mm-3000mm | 100mm-2500mm | 100mm-2000mm | |
| Laser(Thermal camera Optional) | Distance | 2000m | 1500m | 1000m |
| Wavelength | 808nm | |||
| Chip Power | 16w | 12w | 10w | |
| Network | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) | ||
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |||
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |||
| AI Algorithm | AI Computing Power | 1T | ||
| PTZ | Rotation range | Horizontal: 360° continuous rotation; Vertical: +90°～-90° | ||
| spinning speed | Horizontal: 0.1～50°/s; Vertical: 0.1～100°/s | |||
| Preset position accuracy | ±0.15° | |||
| Number of preset positions | 255 | |||
| General | Power supply mode | DC12V | ||
| Power consumption | ≤88W (minimum)/≤140W (infrared light ON, low temperature start) | |||
| Working temperature | -40℃～60℃ | |||
| Working humidity | <95%RH | |||
| Protection grade | IP67 | |||
| EMC level | Built-in 4000V lightning protection, anti-surge and anti-surge protection | |||
| Product weight | 11kg | |||
Dimension
