Chinese wholesale 2mp 46x Digital Zoom Camera Module - 2MP 25x Digital Zoom Camera Module – Huanyu Detail:

Product Description

Support 3D Digital Noise Reduction, High Light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
Supports Defog, Maximum Improves The Foggy Image
Support 256G Micro SD / SDHC / SDXC
Optional Interfaces for Convenient Function Expansion
Small Size and Low Power, Easy to Inset PT Unit, PTZ

Application:

The 2Mp 25x digital zoom camera is the most classic zoom block camera compatible with SONY IMX385. It can be widely used in vehicle CCTV, video conference, robot, drone and so on. The camera utilizes ultra-low light sensitivity, high signal to noise (SNR) ratio, and uncompressed Full HD streaming at 30 fps. If you are familiar with Sony VISCA protocol, then it is easy to integrate our camera.

Application

Specifications

Specifications
Camera	Image Sensor	1/1.8” Progressive Scan CMOS
	Minimum Illumination	Color:0.0005 Lux @ (F1.5, AGC ON); B/W:0.0001Lux @ (F1.5, AGC ON)
	Shutter	1/25s to 1/100,000s; Support delayed shutter
	Aperture	DC drive
	Day/Night Switch	ICR cut filter
	Digital zoom	16x
Lens	Focal Length	6.7-167.5mm, 25x Optical Zoom
	Aperture Range	F1.5-F3.4
	Horizontal Field of View	59.8-3°（wide-tele）
	Minimum Working Distance	100mm-1500mm (wide-tele)
	Zoom Speed	Approximately 3.5s (optical, wide-tele)
Compression Standard	Video Compression	H.265 / H.264 / MJPEG
	H.265 Type	Main Profile
	H.264 Type	BaseLine Profile / Main Profile / High Profile
	Video Bitrate	32 Kbps~16Mbps
	Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
	Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
*Image（Maximum Resolution：19201080）**	Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720)
	Third Stream	50Hz: 25fps (704 ×576); 60Hz: 30fps (704 ×576)
	Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse
	BLC	Support
	Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
	Focus Mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
	Area Exposure / Focus	Support
	Defog	Support
	Image Stabilization	Support
	Day/Night Switch	Automatic, manual, timing, alarm trigger
	3D Noise Reduction	Support
	Picture Overlay Switch	Support BMP 24-bit image overlay, customized area
	Region of Interest	Support three streams and four fixed areas
Network	Storage Function	Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support)
	Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
	Interface Protocol	ONVIF(PROFILE S,PROFILE G)
Smart Calculation	Smart Calculation	1T
Interface	External Interface	36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out Line In/Out, power)
General	Working Temperature	-30℃~60℃, humidity≤95%(non-condensing)
	Power supply	DC12V±25%
	Power consumption	2.5W MAX (ICR, 4.5W MAX)
	Dimension	116.5x57x69mm
	Weight	415g

Dimension

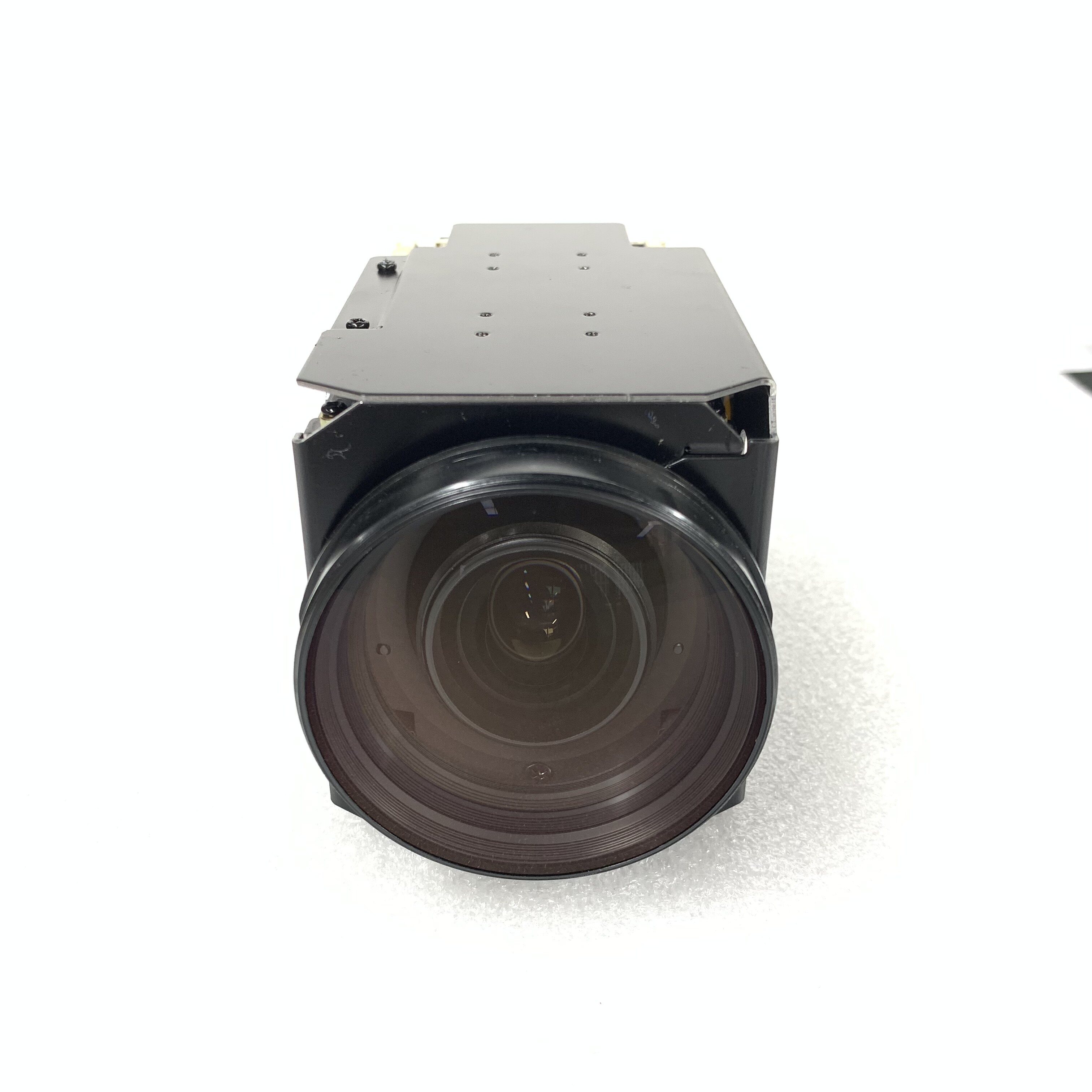

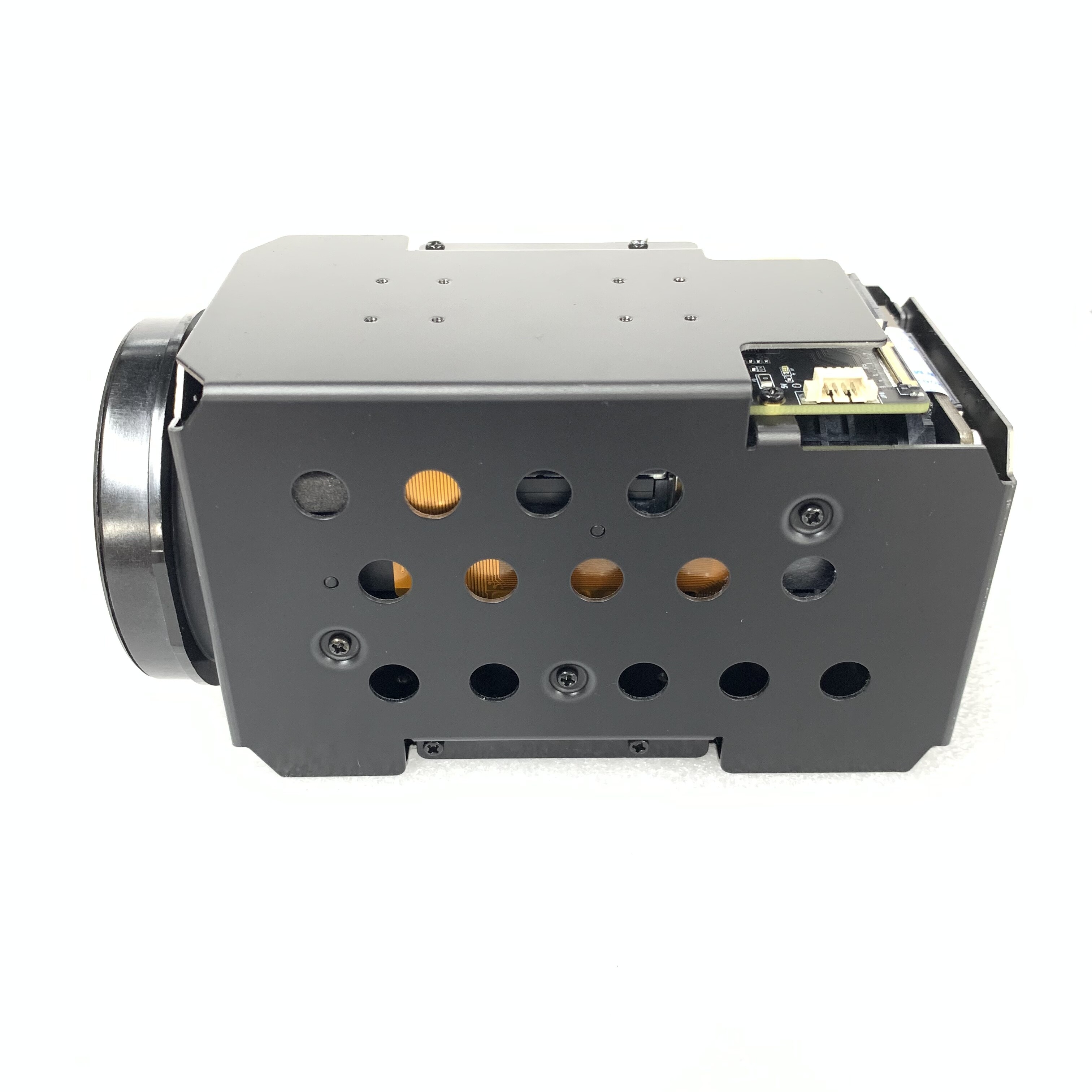

Product detail pictures:
