Product Description
- 10x Optical Zoom
- Support Motion Detection, etc.
- Support 3-stream Technology, Each Stream Can Be Independently Configured With Resolution And Frame Rate
- ICR Automatic Switching, 24 Hours Day and Night Monitor
- Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
- Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
- Support 255 Presets, 8 Patrols
- Support Timed Capture and Event Capture
- Support One-click Watch and One-click Cruise Functions
- Support One Channel Audio Input and Output
- Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
- Support 256G Micro SD / SDHC / SDXC
- Support ONVIF
- Optional Interfaces for Convenient Function Expansion
- Small Size and Low Power, Easy to Inset PT Unit, PTZ
Application
8MP 10X NDAA Compliant Network Zoom Camera Module integrated HD network camera movement module, using H.265 high performance video image processing engine, supports up to Full HD (3840×2160) real-time video image output. Integrated 10X optical zoom aspherical lens H full-function output interface, unified coding IP output, used for rapid integration of variable speed ball machine, infrared ball machine, integrated head and other products. It is especially suitable for users who are sensitive to cost and have a short integration time. It can provide low bit stream and cost-effective HD video images and overall solutions for security monitoring sites such as parks, buildings and residential areas.
Specification
Specifications | ||
| Camera | Image Sensor | 1/2.8” Progressive Scan CMOS |
| Minimum Illumination | Color:0.001 Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON) | |
| Shutter | 1/25s to 1/100,000s；Supports delayed shutter | |
| Aperture | DC drive | |
| Day/Night Switch | ICR cut filter | |
| Lens | Focal Length | 4.8-48mm, 10x Optical Zoom |
| Aperture Range | F1.7-F3.1 | |
| Horizontal Field of View | 62-7.6°（wide-tele） | |
| Minimum Working Distance | 1000m-2000m (wide-tele) | |
| Zoom Speed | Approximately 3.5s(optical lens, wide-tele) | |
| Image（Maximum Resolution：3840*2160） | Main Stream | 50Hz: 25fps (3840×2160, 1280 × 960, 1280 × 720);60Hz: 30fps (3840×2160，1280 × 960, 1280 × 720) |
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | |
| BLC | Support | |
| Exposure Mode | AE / Aperture Priority / Shutter Priority / Manual Exposure | |
| Focus Mode | Auto / One step / Manual/ Semi-Auto | |
| Area Exposure / Focus | Support | |
| Optical Defog | Support | |
| Day/Night Switch | Automatic, manual, timing, alarm trigger | |
| 3D Noise Reduction | Support | |
| Network | Storage Function | Support Micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Interface | External Interface | 36pin FFC (Network port, RS485, RS232,SDHC, Alarm In/Out Line In/Out, power) USB, HDMI(optional) |
| GeneralNetwork | Working Temperature | -30℃~60℃, humidity≤95%(non-condensing) |
| Power supply | DC12V±25% | |
| Power consumption | 2.5W MAX(4.5W MAX) | |
| Dimensions | 61.9*55.6*42.4mm | |
| Weight | 101g | |

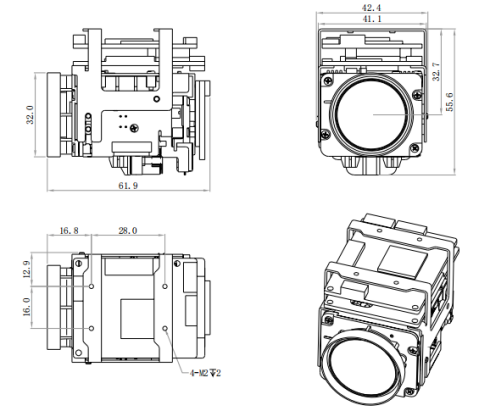

Dimension
