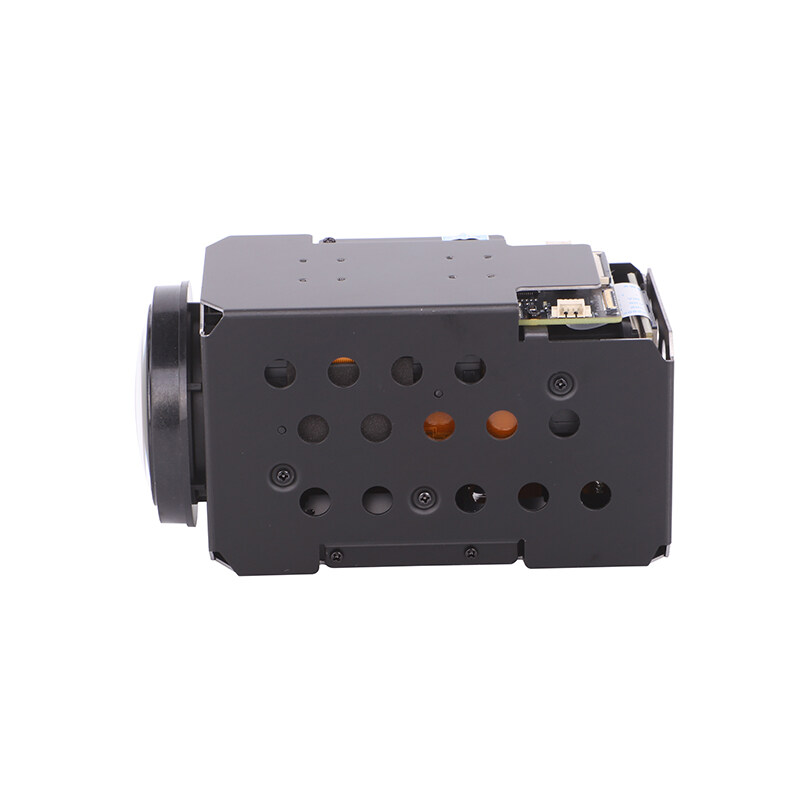

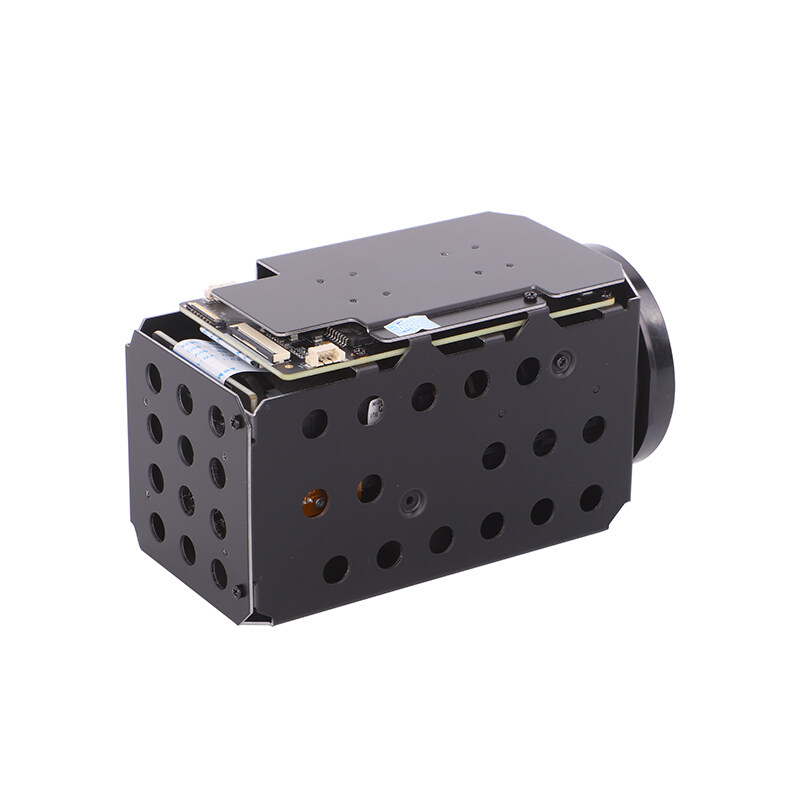

China Cheap price Normal Range Digital Zoom Block Camera - 2MP 37x Digital Zoom Camera Module – Huanyu

Product Description

• 37x optical zoom and 16x digital zoom provides the power to see objects which is long distance away. It can be widely used in video surveillance, video conference, robot and so on.
• Different from the traditional CCD sensor digital module, Univision’s self-developed image algorithm module using the latest Sony CMOS sensor guarantees the image quality while having a better price. At the same time, it can provide SDK secondary development to facilitate customers to integrate themselves. Systems and applications. Strong technical support and research and development capabilities are our company’s direction of development
• Excellent Low Illumination and Fine Image Quality
• Support 3A Control (Auto White Balance, Auto Exposure, Auto Focus)
• Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
• Support 3D Digital Noise Reduction, High Light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
• Supports Optical Defog, Maximum Improves The Foggy Image
• Support 256G Micro SD / SDHC / SDXC
• Optional Interfaces for Convenient Function Expansion
• Small Size and Low Power, Easy to Inset PT Unit, PTZ

Application:

The 37x digital zoom camera is based on SONY IMX385 COMS sensor, with max focal length 240mm, can be widely used in building monitoring, park monitoring, construction site monitoring and so on. It provides optical defog function, so the users can see images clearly even in rain and fog weather.

The control is simple and compatible with VISCA protocol. If you are familiar with the control of SONY block camera, it is easy to integrate our camera.

The UV-ZN2237 module using the latest super-starlight low-illuminance sensor can present high-quality full-color images at night, and is optimized by Univision’s independent image algorithm, and the image noise is also very small

Solution

China is one of the earliest countries in the world to use water transportation. With the development of transportation, water transportation requires that the waterways of various water systems communicate with each other and connect to form a network. The waterway safety management department needs to understand the normal operation of ships, overweight conditions, and seek help in real time. Search and accurately locate, and record the number of ships entering the area for inquiries.
my country is building “digital water conservancy” and “smart water conservancy”, comprehensively constructing a remote video real-time monitoring system for water conservancy systems, real-time dynamic monitoring of possible or ongoing floods, dangers, and disasters, and timely preventive and remedial measures, which can comprehensively improve flood control. The effectiveness and reliability of flood fighting work plays an important role in reducing flood disasters, alleviating flood control pressure, and ensuring the safety of people’s lives and property.
With the development of safety informationization, traditional monitoring equipment can no longer meet the application requirements of large-scale safety management of waterway and water transportation due to problems such as small monitoring range, low resolution, and poor night vision capabilities. The channel digital remote day and night monitoring system can achieve a monitoring distance of tens of kilometers, and with the maturity of fog-through imaging technology, the ability to monitor various weather environments has been greatly improved; with the maturity of the digital channel visualization remote video monitoring system Application, gradually replacing the traditional short-range monitoring equipment, and beginning to be used in a wide range of aspects such as channel safety navigation, channel intrusion monitoring, and bridge span safety navigation monitoring.

Specifications

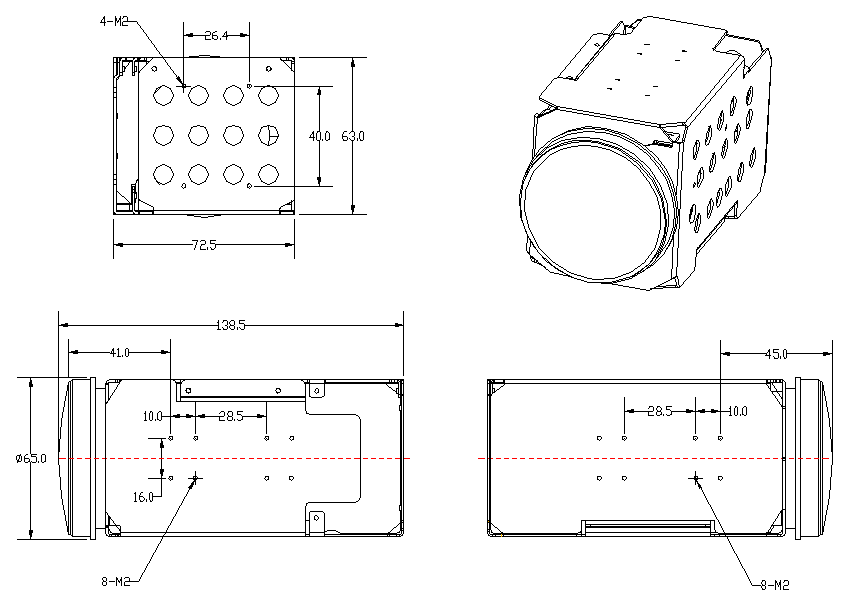

Dimension
