2021 China New Design 4mp 6x Network Zoom Camera Module - 4MP 4X NDAA Compliant Network Zoom Camera Module – Huanyu Detail:

Product Description

Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
Support 255 Presets, 8 Patrols
Support Timed Capture and Event Capture
Support One-click watch and One-click Cruise Functions
Support One Channel Audio Input and Output
Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
Support 256G Micro SD / SDHC / SDXC
Support ONVIF
Optional Interfaces for Convenient Function Expansion

Specification

Specifications
Camera	Image Sensor	1/2.8” Progressive Scan CMOS
	Minimum Illumination	Color:0.001 Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON)
	Shutter	1/25s to 1/100,000s；Supports delayed shutter
	Auto Iris	DC
	Day/Night Switch	IR cut filter
Lens	Focal Length	3-12mm，4X Optical Zoom
	Aperture Range	F1.6-F3
	Horizontal field of view	108.6-32°（wide-tele）
	Minimum Working distance	1000mm-1000mm (wide-tele)
	Zoom speed	Approximately 1.5s(optical lens, wide to tele)
Compression Standard	Video Compression	H.265 / H.264 / MJPEG
	H.265 Type	Main Profile
	H.264 Type	BaseLine Profile / Main Profile / High Profile
	Video Bitrate	32 Kbps~16Mbps
	Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
	Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image（Maximum Resolution：*25601440**）	Main Stream	50Hz: 25fps (25601440，1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (25601440，1920 × 1080, 1280 × 960, 1280 × 720)
	Third Stream	50Hz: 25fps(704 ×576); 60Hz: 30fps(704 ×576)
	Image settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
	BLC	Support
	Exposure mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
	Focus mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
	Area exposure / focus	Support
	Optical fog	Support
	Day/Night Switch	Automatic, manual, timing, alarm trigger
	3D noise reduction	Support
	Picture overlay switch	Support BMP 24-bit image overlay, customizable area
	Region of interest	ROI supports three streams and four fixed areas
Network	Storage function	Support USB extend Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support)
	Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
	Interface Protocol	ONVIF(PROFILE S,PROFILE G)
Smart Calculation	Intelligent computing power	1T
Interface	External Interface	36pin FFC (Network port、RS485、RS232、SDHC、Alarm In/Out、Line In/Out、power)
General	Working Temperature	-30℃~60℃, humidity≤95%(non-condensing)
	Power supply	DC12V±25%
	Power consumption	2.5W MAX(IR Maximum,4.5W MAX)
	Dimensions	54.646.534.4
	Weight	60g

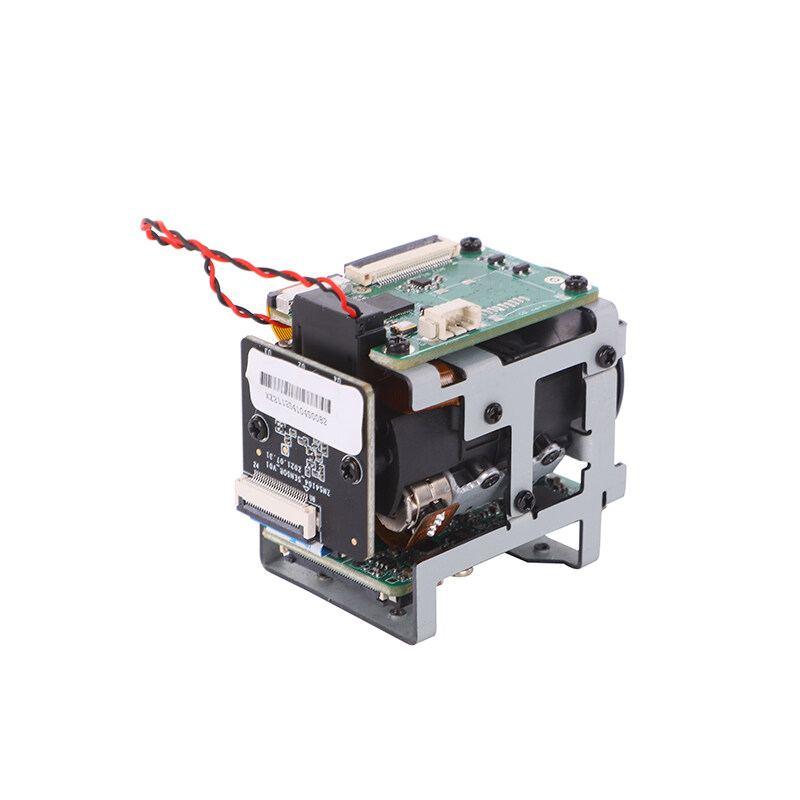

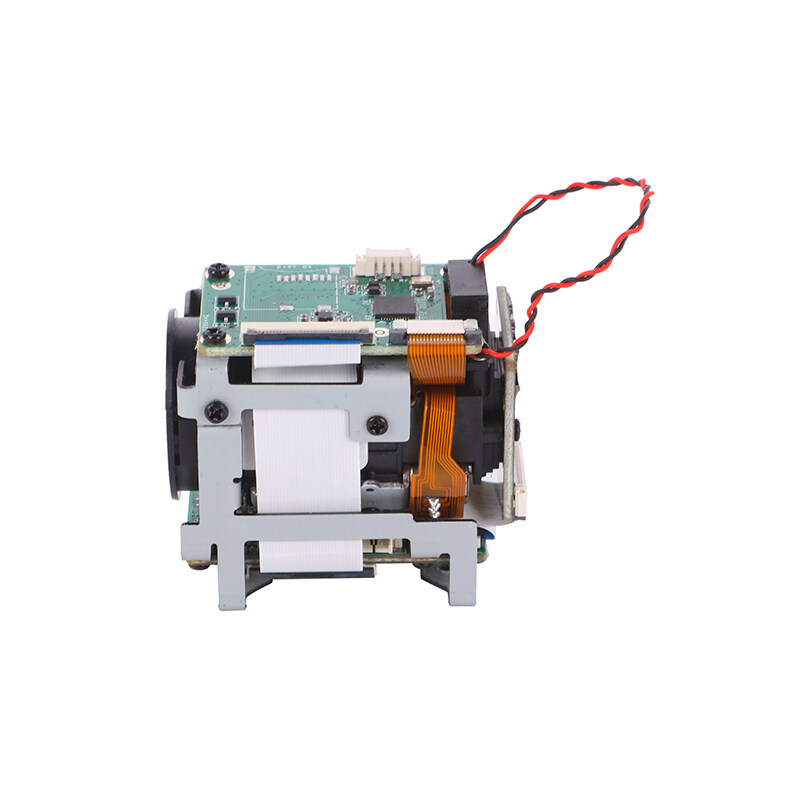

Product detail pictures:
