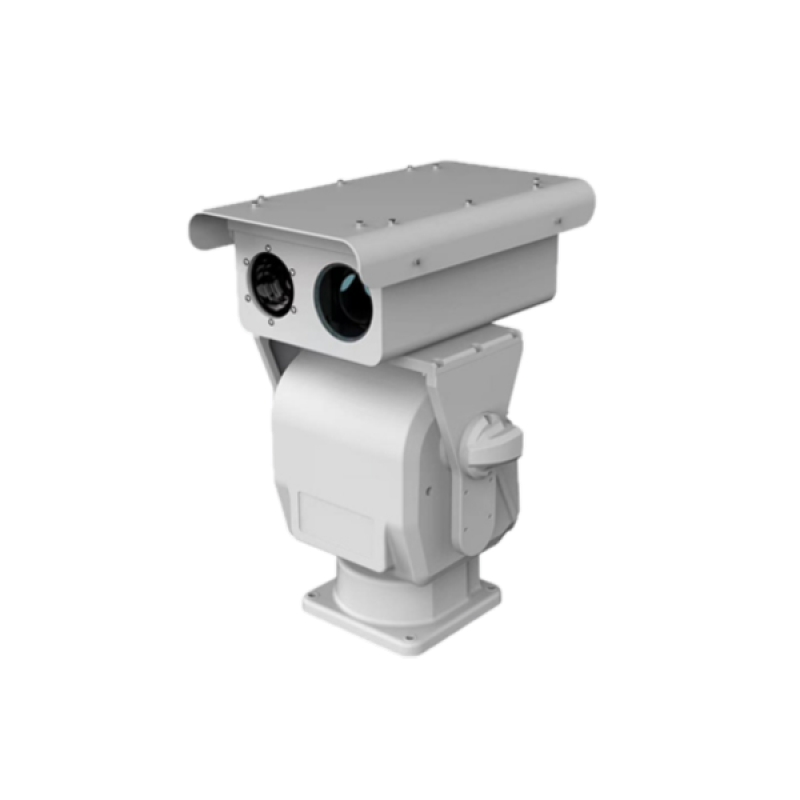

10km Long Range PTZ Camera 3km Laser Illuminator
Product Description
Features
- Resolution up to 2MP（1920×1080）,Output Full HD : 1920×1080@30fps Live Image.
- Support H.265/H.264/MJPEG Video Compression Algorithm ,Multi-level Video Quality Configuration and Encoding
- Fire&Smoke detection optional
- Auto tracking optional
- Starlight Low Illumination，0005Lux/F2.1(color),0.0001Lux/F2.1(B/W) ,0 Lux with IR
- 92X Optical Zoom
- All-weather environment, anti-strong wind structure design, power-off self-locking function
- Load-bearing body, high-strength aluminum alloy shell, top load form can carry various loads
- Using DC brushless motor with gear reducer transmission, low power can be used for solar power supply
- Built-in temperature control circuit, wide range of temperature work
- Adopt high-precision digital absolute position encoder, no power-on self-inspection, no accumulated deviation of preset positions;
- Fast response, no lag, flexible and convenient operation
- Multiple preset positions, high preset position accuracy, multi-track cruise
- Automatic inspection function, automatic scanning function, support watch function
- The protection grade is IP66, and the surface has been specially treated to meet the requirements of three-proof environment design
Application
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.DRI
Specification
|
Specifications |
|||
|
DRI |
Type |
Human 1.8*0.5 |
Vehicle 2.3*2.3 |
|
Detection |
8km |
18km |
|
|
Recognition |
5km |
11km |
|
|
Identification |
2.5km |
10km |
|
|
Camera |
Image Sensor |
1/1.8” Progressive Scan CMOS |
|
|
Lens |
Video Output |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
|
Focal Length |
6.1~561mm, 92X Optical Zoom |
||
|
Aperture Range |
F1.4-F4.7 |
||
|
Horizontal Field of View |
65.5-1.1°（wide-tele） |
||
|
Minimum Working Distance |
100mm-3000mm (wide-tele) |
||
|
Focus |
Auto focus/one time focus/manual focus/semi-automatic focus |
||
|
Image settings |
Saturation, brightness, contrast, and sharpness are adjustable through the client or browser |
||
|
Exposure |
Auto exposure/aperture priority/shutter priority/manual exposure |
||
|
BLC |
Support |
||
|
Switch between day and night |
Automatic ICR infrared filter |
||
|
Electronic image stabilization |
Support |
||
|
Optical defog |
Support |
||
|
Eliminate Hear Wave |
Support |
||
|
3D noise reduction |
Support |
||
|
OSD |
Support text and picture overlay |
||
|
Video encoding |
H.265/H.264/MJPEG |
||
|
Laser Illuminator |
Wavelength |
808±5nm（940nm、980nm Optional） |
|
|
Power |
20±1W |
||
|
Distance |
3000meters |
||
|
Lightning Angels |
Minimum Angle 0.3°; Lighting Distance >3000m; Spot Diameter <16m; Near Angle 35°; Lighting Distance >100m; Spot Diameter <58m; |
||
|
Network |
Storage Function |
Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
|
|
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
||
|
Interface Protocol |
ONVIF (PROFILE S, PROFILE G, PROFILE T) |
||
|
PTZ |
Rotation range |
Horizontal: 0~360° continuous rotation; Vertical: +45°~-70° |
|
|
Spinning speed |
Horizontal: 0.01~37°/s; Vertical: 0.01~9°/s |
||
|
Preset position accuracy |
±0.05° |
||
|
Number of preset positions |
255 (customizable) |
||
|
Other |
Support cruise scan/auto scan; support query angle return function (optional real-time angle return) |
||
|
Communication |
Pelco D RS485, Ethernet RJ45 |
||
|
General |
Power supply mode |
DC12V/24V±10% |
|
|
Power consumption |
Max 65W, Average 31W |
||
|
Working temperature |
-40℃～+65℃ |
||
|
Working humidity |
<90%RH |
||
|
Protection grade |
IP66 |
||
|
EMC level |
TVS 6000V lightning protection and surge protection |
||
|
Anti-salt fog level |
PH value is 6.5～7.2, continuous spraying for 48 hours, no change on the surface |
||
|
Dimension |
430mm*274mm*175mm |
||
|
Weight |
＜15kg |
||
