Original Factory China Vehicle Long Range 86X Optical Zoom 10km 4MP CCTV Camera

Short description:

UV-ZN4286

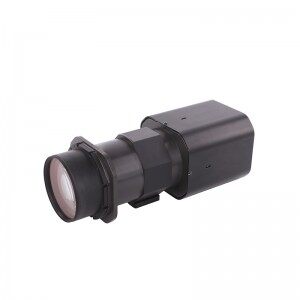

86x 4MP Starlight Ultra Long Range Network Camera Module

  • It Supports deep algorithm learning to improve the performance of intelligent event algorithms, 1T intelligent computing power
  • Resolution up to 4MP (2560*1440), 2560*1440@30fps Live Image.
  • H.265/H.264/MJPEG Video Compression Algorithm , Multilevel Video Quality Configuration and Coding Complexity Setting
  • 0.0005Lux/F1.4(color), 0.0001Lux/F1.4(B/W), 0 Lux with IR
  • 86X Optical Zoom, 16X Digital Zoom
  • Equipment with unique electronic anti-shake technology, heat wave technology, and fog penetration technology, this camera can work in any environment. The high-end ultra-telephoto lens and sensor have achieved 100% performance release under our algorithm.
  • The shell protection design perfectly protects the working environment of the high-end optical lens, coupled with the temperature compensation function and correction algorithm, it can be perfectly qualified for monitoring tasks under various ultra-long-distance observation needs





    Product details
    Product Tags

    We also supply products soulcing and flight consolidation services. We now have our personal manufacturing unit and sourcing business office. We can give you almost every variety of solution related to our merchandise association for Original Factory China Vehicle Long Range 86X Optical Zoom 10km 4MP CCTV Camera, should you may have any query or wish to place an initial purchase be sure to never hesitate to contact us.
    We also supply products soulcing and flight consolidation services. We now have our personal manufacturing unit and sourcing business office. We can give you almost every variety of solution related to our merchandise association forChina CCTV Camera,Security Camera, By integrating manufacturing with foreign trade sectors, we can present total customer solutions by guaranteeing the delivery of right merchandise to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified products and the control of the industry trend as well as our maturity before and after sales services. We’d like to share our ideas with you and welcome your comments and questions.

    Product Description

    • Optical fog transmission, which greatly improves the foggy image effect
    • 3-stream Technology, each stream can be independently configured with resolution and frame rate
    • ICR automatic switching, 24 hours day and night monitoring
    • Backlight Compensation, Automatic Electronic Shutter, adapt to different monitoring environment
    • 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Wide Dynamic
    • 255 Preset,8 patrols
    • Timed Capture and Event Capture
    • One-click watch and One-click cruise functions
    • 1 audio input and 1 audio output
    • Built-in 1 alarm input and 1 alarm output, support alarm linkage function
    • Micro SD/SDHC/SDXC card storage up to 256G
    • ONVIF
    • Rich interfaces for convenient function expansion
    • Small size and low power consumption, easy to access PTZ

    Applications:

    • Marine survey
    • Homeland security
    • Coastal defense, forest fire prevention and other industries

    Solution

    Highway special monitoring system
    The system is designed in accordance with a multi-level structure, including multiple levels at the provincial, municipal, and regional levels, and is suitable for building a large-scale monitoring network. At the same time, each subsystem can run independently, not dependent on other parts. In the highway part, a digital monitoring mode is adopted, and the video signal is collected to the host computer of the highway monitoring system Through light. In the toll station part, the network transmission mode is adopted, and the original network resources are collected to the host of the integrated business management system to realize unified management. At the same time, higher-level institutions can also use the traffic private network to realize remote monitoring and build a multi-level monitoring system.

    Service

    With the “customer-oriented” small business philosophy, rigorous high-quality camera system, highly developed production machines and strong R&D team, we always provide high-quality products and solutions and first-class services for China’s massive selection And positive cost Univision’s newly designed ultra-long-distance camera zoom module, Box Camera, IP camera Module, welcome partners from all over the world to visit and negotiate. China’s high-quality selection of CCTV cameras and IP cameras. In an increasingly competitive market, we always provide customers with solutions and technical support with sincere service, high-quality products and well-deserved reputation, in order to achieve long-term cooperation. Taking quality and innovative scientific research capabilities as the core competitiveness, and seeking development with report is our eternal pursuit. We firmly believe that after your visit, we will become a long-term partner.

    Application

    Specifications

    Specifications

    CameraImage Sensor1/1.8” Progressive Scan CMOS
    Minimum IlluminationColor:0.0005 Lux @(F2.1,AGC ON);B/W:0.00012.1Lux @(F2.1,AGC ON)
    Shutter1/25s to 1/100,000s;Supports delayed shutter
    AperturePIRIS
    Day/Night SwitchIR cut filter
    Digital zoom16X
    LensLensVideo OutputNetwork
    Focal Length10-860mm,86X Optical Zoom
    Aperture RangeF2.1-F11.2
    Horizontal Field of View38.4-0.46°(wide-tele)
    Minimum Working Distance1m-10m (wide-tele)
    Image(Maximum Resolution:2560*1440)Zoom SpeedApproximately 8s(optical lens, wide-tele)
    Main Stream50Hz: 25fps (2560*1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560*1440, 1920 × 1080, 1280 × 960, 1280 × 720)
    Image SettingsSaturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
    BLCSupport
    Exposure ModeAE / Aperture Priority / Shutter Priority / Manual Exposure
    Focus ModeAuto / One step / Manual / Semi -Auto
    Area Exposure / FocusSupport
    Optical DefogSupport
    Image StabilizationSupport
    Day/Night SwitchAutomatic, manual, timing, alarm trigger
    3D Noise ReductionSupport
    NetworkStorage FunctionSupport micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)
    ProtocolsTCP/IP,ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6
    Interface ProtocolONVIF(PROFILE S,PROFILE G), GB28181-2016
    AI AlgorithmAI Computing Power1T
    InterfaceExternal Interface36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out
    Line In/Out, power)
    GeneralNetworkWorking Temperature-30℃~60℃, humidity≤95%(non-condensing)
    Power supplyDC12V±25%
    Power consumption2.5W MAX (I11.5W MAX)
    Dimensions374*150*141.5mm
    Weight5190g

    Dimension

    DimensionWe also supply products soulcing and flight consolidation services. We now have our personal manufacturing unit and sourcing business office. We can give you almost every variety of solution related to our merchandise association for Original Factory China Vehicle Long Range 86X Optical Zoom 10km 4MP CCTV Camera, should you may have any query or wish to place an initial purchase be sure to never hesitate to contact us.
    Original FactoryChina CCTV Camera,Security Camera, By integrating manufacturing with foreign trade sectors, we can present total customer solutions by guaranteeing the delivery of right merchandise to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified products and the control of the industry trend as well as our maturity before and after sales services. We’d like to share our ideas with you and welcome your comments and questions.
