High reputation Ois Ptz Camera - 6km Long Range Laser PTZ Camera – Huanyu
High reputation Ois Ptz Camera - 6km Long Range Laser PTZ Camera – Huanyu Detail:
Product Description
Feature
- DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
- Super homogenizing and power consumption control of NIR laser ensure a better effect.
- Independent laser photocell.
- 360° continuously rotation PT, rotation stable.
- One integral aluminum alloy housing, IP66 ingress protection, waterproof, anti-dust.
Application
Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, maculture security, city security and forest fire prevention.
Specification
Model | UV-PT863 |
Detection | Day: 6 km |
Night: 3 km | |
Consumption | 15W, 810nm, NIR |
Laser angle | 0.5°～20° |
Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1° follow-up zooming |
GHT-II super homogenizing HD illumination technology | |
0.01°SLM optical axis aiming and locking | |
Camera | 1/1.8”, 0.0005lux high sensitive color to B/W CCD, 4MP |
Automatic ICR switch, H.265 video format | |
Lens | 10-860mm HD lens, infrared correction, 4 mega pixels, motorized zoom |
Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog |
Housing | One integral aluminum alloy housing, sealed and waterproof, IP66 |
Load duty | 50kg |
PT | Pan: 360°continuously |
Tilt: +45°～-45° | |
Rotation speed | Pan: 0.01～30°/S |
Tilt: 0.01～15°/S | |
Preset | 80, with patrol and scan function |
Interface | 1*RJ45, 1*AC24V |
Power supply | AC24V±10%, 50Hz, 180W, standard configuration AC220V->AC24V adapter |
Weatherproof | IP66 |
Anti-lighting | Power voltage 4000V, communication signal 2000V |
Protocol | Pelco-P、Pelco-D and so on standard protocol, baud rate 2400、4800、9600、19200 |
Operational temp. | -25℃～+55℃ (-40℃ optional) |
Weight | 45kg |

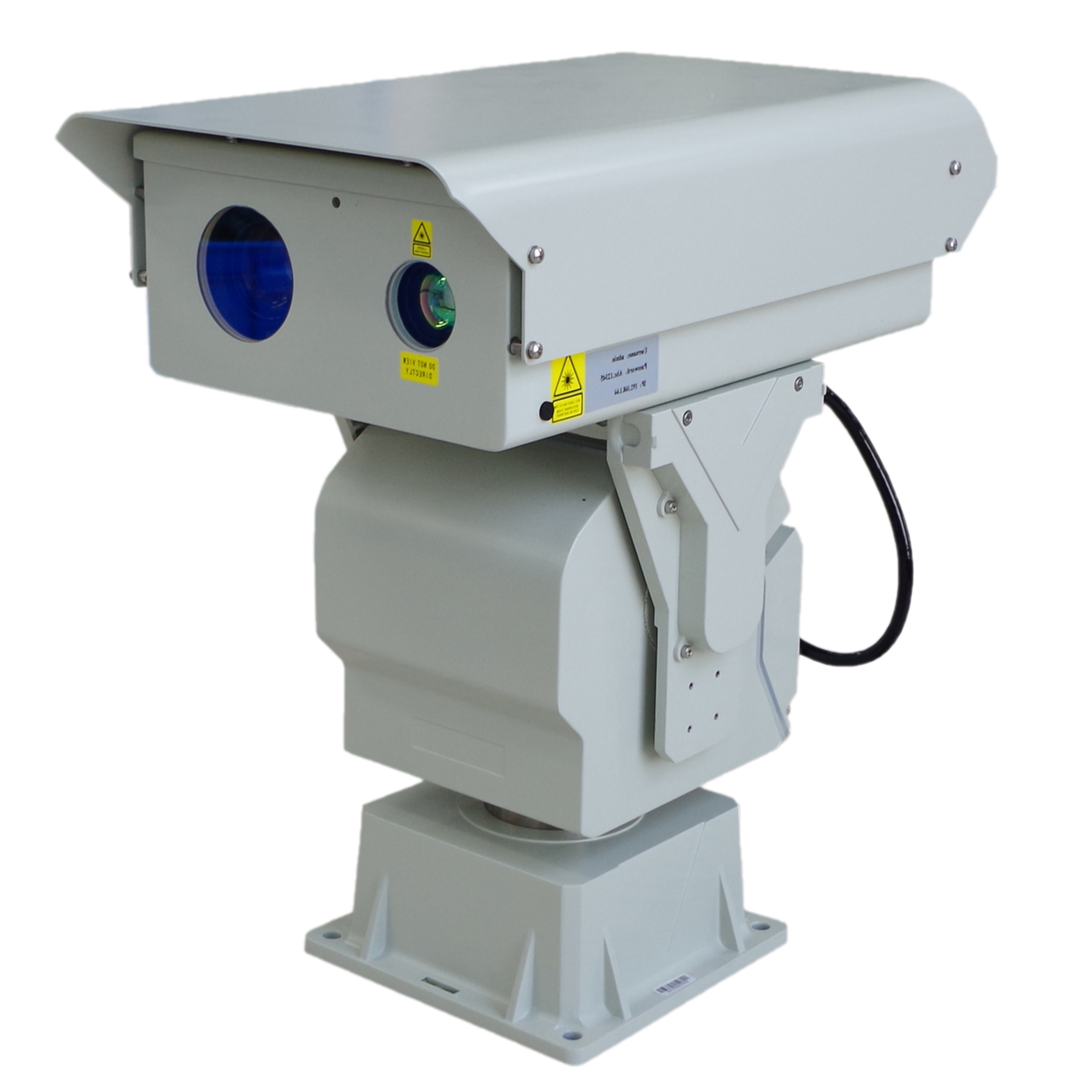

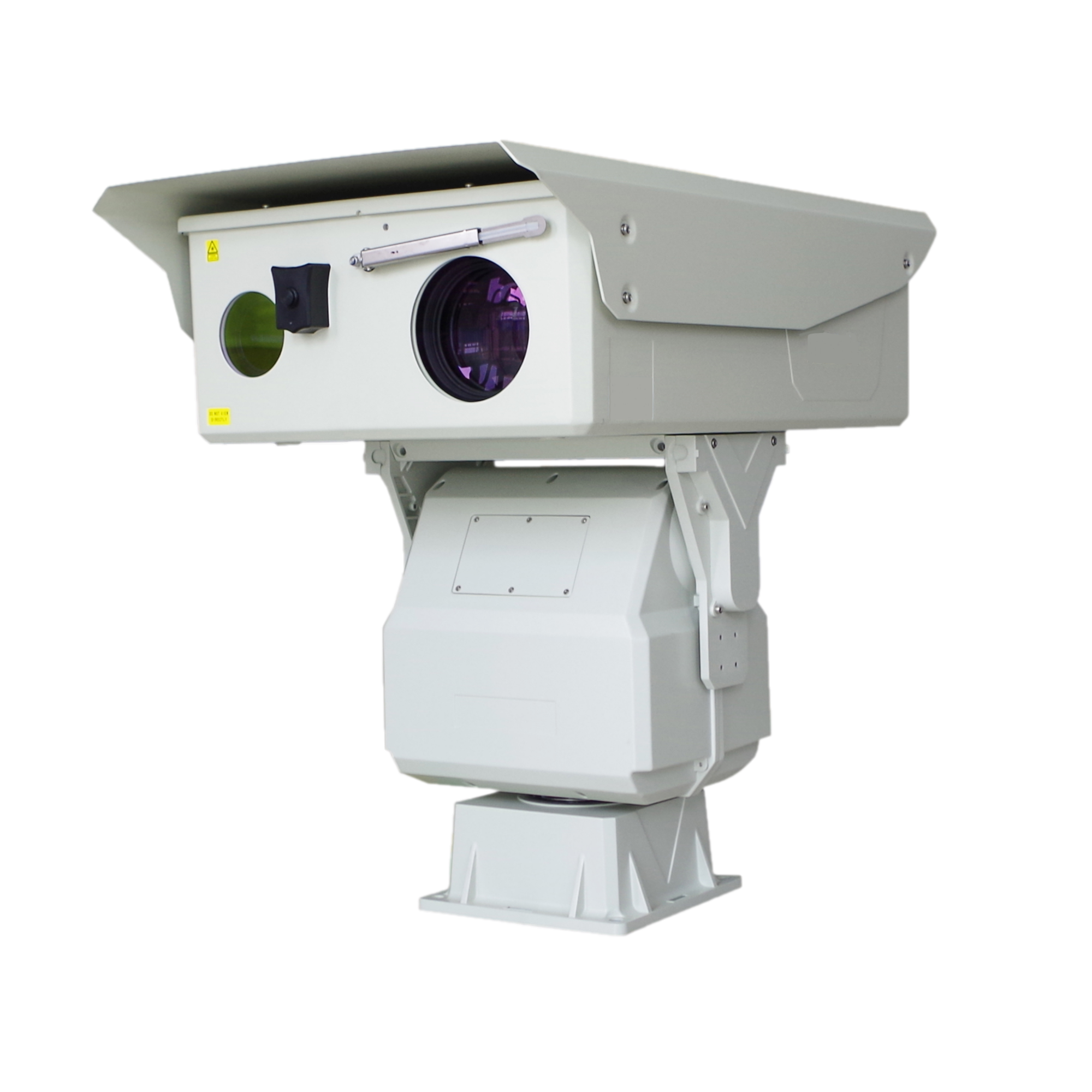

Product details pictures:
