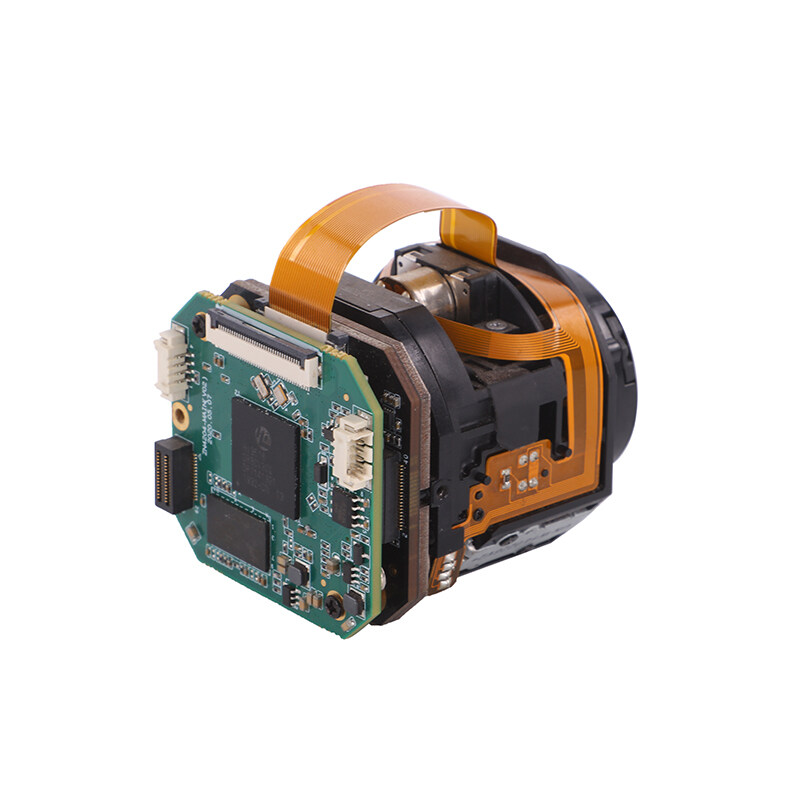

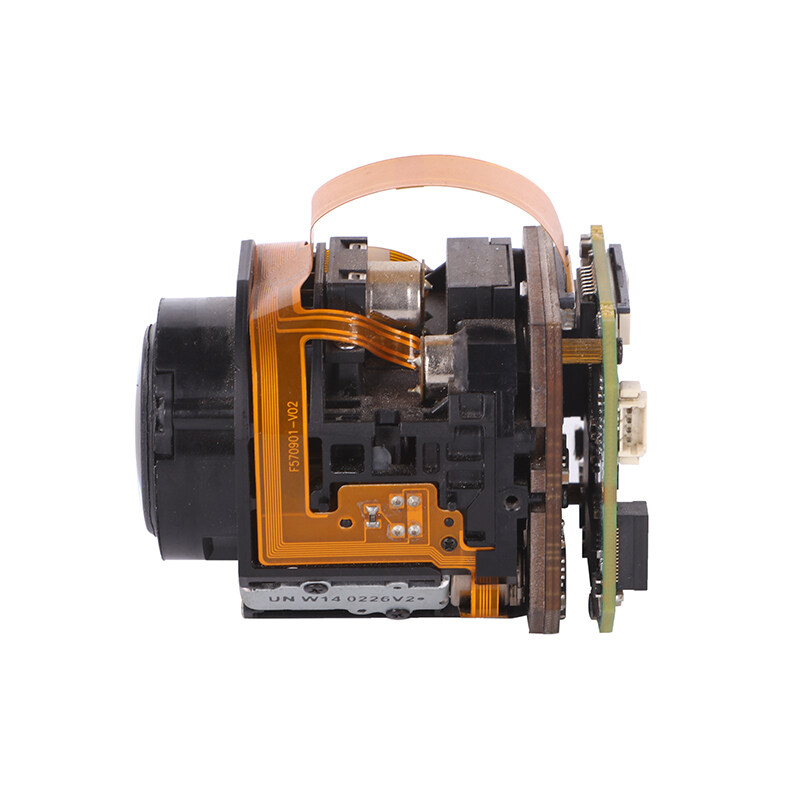

China Manufacturer for Ip Camera Zoom 30x Module - 4MP 4x Network Zoom Camera Module – Huanyu
China Manufacturer for Ip Camera Zoom 30x Module - 4MP 4x Network Zoom Camera Module – Huanyu Detail:
Product Description
- Auto focus
- Optical fog function
- Day and night IR confocal
- Automatic temperature compensation function
- RS232, RS485 serial port control
- Good lens optical axis consistency, 3 pixels in the whole process
- The lens has good anti-vibration and impact resistance, meeting the requirements of military industry
- Good environmental adaptability, can work normally at -30°~60°
- Support analog, network, digital multiple interfaces
- With the support of a four-megapixel sensor and a quadruple lens, coupled with our completely self-developed excellent algorithm, this mini module can be competent for the reconnaissance work of various UAVs. It is very valuable for both military and civilian use. .
- Sensor 1/1.8” Progressive Scan CMOS
- Lens 8-32mm, 4X Optical Zoom
- Aperture F1.6-F2.5
- Low Illumination 0.0005 Lux @(F1.6,AGC ON);B/W:0.0001Lux @(F1.6,AGC ON)
- Potocol ONVIF
- Coding way H.265/H.264
- Storage 256G Micro SD/SDHC/SDXC
- Small Size and Low Power, Easy to Inset PT Unit, PTZ
Specifications
Specifications | ||
| Camera | Image Sensor | 1/1.8” Progressive Scan CMOS |
| Minimum Illumination | Color:0.0005 Lux @(F1.6,AGC ON);B/W:0.0001Lux @(F1.6,AGC ON) | |
| Shutter | 1/25s to 1/100,000s;Supports delayed shutter | |
| Auto Iris | DC | |
| Day/Night Switch | IR cut filter | |
| Digital zoom | 16X | |
| Lens | Focal Length | 8-32mm,4X Optical Zoom |
| Aperture Range | F1.6-F2.5 | |
| Horizontal field of view | 40.26-14.34°(wide-tele) | |
| Minimum Working distance | 100mm-1500mm (wide-tele) | |
| Zoom speed | Approximately 1.5s(optical lens, wide to tele) | |
| Compression Standard | Video Compression | H.265 / H.264 / MJPEG |
| H.265 Type | Main Profile | |
| H.264 Type | BaseLine Profile / Main Profile / High Profile | |
| Video Bitrate | 32 Kbps ~16Mbps | |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) | |
| Image(Maximum Resolution:2560*1440) | Main Stream | 50Hz: 25fps (2560*1440,1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560*1440,1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps(704 × 576); 60Hz: 30fps(704 × 576) | |
| Image settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | |
| BLC | Support | |
| Exposure mode | AE / Aperture Priority / Shutter Priority / Manual Exposure | |
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi - Auto Focus | |
| Area exposure / focus | Support | |
| Optical fog | Support | |
| Image stability | Support | |
| Day/Night Switch | Automatic, manual, timing, alarm trigger | |
| 3D noise reduction | Support | |
| Picture overlay switch | Support BMP 24-bit image overlay, customized area | |
| Region of interest | ROI supports three streams and four fixed areas | |
| Network | Storage function | Support USB extend Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Smart Calculation | Intelligent computing power | 1T |
| Interface | External Interface | 36pin FFC (Network port,RS485,RS232,SDHC,Alarm In/Out,Line In/Out,power) |
| General | Working Temperature | -30℃~60℃, humidity≤95%(non-condensing) |
| Power supply | DC12V±25% | |
| Power consumption | 2.5W MAX(IR Maximum, 4.5W MAX) | |
| Dimensions | 62.7*45*44.5mm | |
| Weight | 110g | |
Dimension
