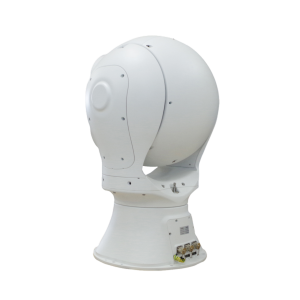

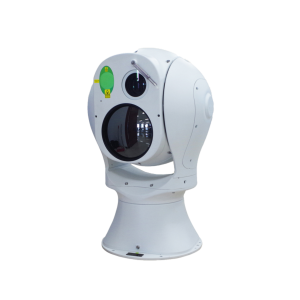

Best Price for Military Grade Ultra Long Range Night Vision PTZ Camera for Border Security
With this motto in mind, we’ve turn into one of quite possibly the most technologically innovative, cost-efficient, and price-competitive manufacturers for Best Price for Military Grade Ultra Long Range Night Vision PTZ Camera for Border Security, All prices depend upon the quantity of your respective purchase; the far more you get, the a lot more economic the price is. We also offer fantastic OEM company to several famous brands.
With this motto in mind, we’ve turn into one of quite possibly the most technologically innovative, cost-efficient, and price-competitive manufacturers forChina Long Range PTZ Camera and Long Range Laser Camera, Our company sticks to the principle of “high quality, reasonable price and timely delivery”. We sincerely hope to establish good cooperative relationships with our new and old business partners from all parts of the world. We hope to work with you and serve you with our excellent products and services. Welcome to join us!
Features
- 120°/s fast rotation speed and 0.02° accuracy can track land/air/sea target
- Front-end auto-tracking functions for high accuracy target tracking
- Function of life index recording for thermal camera
- Image correction technology, good image uniformity and dynamic range.
- 2-axis gyro image stableizer for stable image during wave and strong wind, accuracy≤2mrad
- Special IP66 design enable camera can work in salty/strong light/water spray/ 33m/s wind environment
- One IP address optional: Visible, thermal camera can view, set and control by one IP address
Application Case
Application Recording
Specification
Model | UV-ZSTVC | ||||||||
Thermal Sensor | Sensor | 5th generation uncooled FPA sensor | |||||||
| Optional Cooled Detector | Cooled Thermal Sensor Optional | ||||||||
Effective Pixels | 1280×1024/640×512/384*288, 50Hz | ||||||||
Pixel Size | 12μm/15μm | ||||||||
NETD | ≤35mK/≤20mK | ||||||||
Spectral Range | 7.5 ~ 14μm, LWIR/3.7 – 4.8μm, MWIR | ||||||||
Thermal Lens | Focal length | 25-150mm 6X | 38~190mm 5x | 22~230mm 10x | 30~300 10x | ||||
Cooled Thermal Lens | 15-300mm 20X F4.0 | 22-450mm 20X F4.0 | 30-660mm 20X F4.0 | 90-1100mm 12X F4.0 | |||||
Digital Zoom | 1~8X Continuous Zoom (Step 0.1) | ||||||||
Visible Camera | Sensor | 1/1.8” Star Level CMOS, Integrated ICR Dual Filter D/N Switch 1/2.8” Star Level CMOS, Integrated ICR Dual Filter D/N Switch | |||||||
Resolution | 1920(H)x1080(V)/2560(H)x1440(V) | ||||||||
Frame Rate | 32Kbps ~ 16Mbps, 60Hz | ||||||||
Min. Illumination | 0.005Lux (Color), 0.0005Lux (B/W) | ||||||||
SD Card | Support | ||||||||
Visible Lens | Lens Size | 5.5~180mm 33x (4mp optional) | 6.5~240mm 37x(4mp optional) | 7~322mm 46x | 6.1~561mm 92x | 10~860mm 86x(4mp optional) | 10~1000mm 100X(4mp optional) | ||
Image Stabilization | Support | ||||||||
Defog | Support | ||||||||
Focus Control | Manual/Auto | ||||||||
Digital Zoom | 16X | ||||||||
Image | Image Stabilization | Support Electronic Image Stabilization | |||||||
Enhance | Stable operational temperature without TEC, starting time less than 4 seconds | ||||||||
SDE | Support SDE digital image processing | ||||||||
Pseudo Color | 16 pseudo color and B/W, B/W inverse | ||||||||
AGC | Support | ||||||||
Ranging Ruler | Support | ||||||||
Illuminator | IR Distance | IR Distance | |||||||
Laser 3,000 m | Laser 3,000 m | ||||||||
Enhance | Strong Light Protect | Support | |||||||
Temp Correction | Thermal imaging clarity is not affected by temperature. | ||||||||
Scene mode | Support multi-configuration scenarios, adapt to different environment | ||||||||
Lens Servo | Support lens preset, focal length return and focal length location. | ||||||||
Azimuth Information | support angle real-time return and positioning; azimuth video overlay real-time display. | ||||||||
Diagnostic Functions | Disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card absolute alarm (insufficient Space, error, no SD card), video masking alarm, anti-sun damage (threshold, masking time can be set). | ||||||||
Life Index Recording | Working time, shutter times, ambient temperature, core device temperature | ||||||||
Power off memory | Support, can restore power off state | ||||||||
Remote maintenance | remote restart, remote upgrade function, convenient system maintenance | ||||||||
Intelligent
| Fire Detection | Threshold 255 levels, targets 1-16 can be set, hot spot tracking | |||||||
AI Analysis | Support intrusion, boundary crossing, entering/leaving area, motion, winding, people gathering, fast moving, target tracking, items left behind and items taken detection; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering | ||||||||
Auto-tracking | Single/multi scene tracking; panoramic tracking; alarm linkage tracking | ||||||||
AR Fusion | 512 AR intelligent information fusion | ||||||||
Distance Measure | Support passive distance measurement | ||||||||
Image fusion | Support 18 kinds of double light fusion mode, support picture-in-picture function | ||||||||
PTZ | Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Optional) | |||||||
Rotation | Pan: 0～360°, tilt: -90～+90° | ||||||||
Speed | Pan: 0.01~120°/S, Tilt: 0.01~80°/S | ||||||||
Preset | 3000 | ||||||||
Patrol | 16*Patrol Route, 256 Preset for each route | ||||||||
Enhance | Fan/Wiper/Heater attached | ||||||||
Split | Upper and lower split design, can be packaged and transported, combined quickly | ||||||||
Zero Setting | Support the setting of pan and pitch zero | ||||||||
Position Time | less than 4s | ||||||||
Gyro Stable | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° | ||||||||
Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles | ||||||||
Video Audio (Single IP) | Thermal Resolution | 1920×1080; 1280×1024; 1280×960; 1024×768; 1280×720; 704×576; 640×512; 640×480; 400×300; 384×288; 352×288; 352×240 | |||||||
Visible Resolution | 2560×1440; 1920×1080; 1280×1024; 1280×960; 1024×768; 1280×720; 704×576; 640×512; 640×480; 400×300; 384×288; 352×288; 352×240 | ||||||||
Record Rate | 32Kbps ~ 16Mbps | ||||||||
Audio encoding | G.711A/ G.711U/G726 | ||||||||
OSD settings | Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings | ||||||||
Interface | Ethernet | RS-485 (PELCO D protocol, baud rate 2400bps), RS-232 (option), RJ45 | |||||||
Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||||||||
Video Output | PAL/NTSC | ||||||||
Power | DC48V | ||||||||
Compression | H.265 / H.264 / MJPEG | ||||||||
Environmental | Operate Temp | -25℃～+55℃ (-40℃ optional) | |||||||
Storage Temp | -35℃～+75℃ | ||||||||
Humidity | <90% | ||||||||
Ingress Protect | IP67 | ||||||||
Housing | PTA three-resistant coating, Seawater corrosion resistance, Aviation waterproof plug | ||||||||
Wind resistance | spherical, anti-shake, anti-33m/s strong wind | ||||||||
Anti-fog/salty | PH 6.5～7.2 (No less than 700 hours) | ||||||||
Power | 250W (Peak)/ 50W (Stable) | ||||||||
Dimension | Refer to the Dimension Figure | ||||||||
Weight | 120kg | ||||||||
Optional Function | GPS | Accuracy: ＜2.5m; Autonomous 50%: ＜2m (SBAS) | |||||||
Electronic Compass | Range: 0 ~ 360 °, accuracy: heading: 0.5 °, pitch: 0.1 °, roll: 0.1 °, resolution: 0.01 ° | ||||||||
LRF | Laser Range Finder Optional | ||||||||
Dimension
