UV-ZNH4256
Short description:
-
- ●1/1.8'' 4MP CMOS
- ● 2688*1520 @25/30fps
- ● Super Starlight, Color: 0.0001 Lux @ (F3.05, AGC ON);
● Black and white: 0.00005Lux @ (F3.05, AGC ON)
- ● 16.2~907mm 56x optical zoom, 16X digital amplification
- ●Optical fog removal
- ●Wide dynamics
- ●Automatic day and night switching
- ● Optional optical image stabilization system
- ● Optional high-precision optical axis
- ●MIPI/LVDS optional
- ●VISCA, PELCO-D/P
- ●ONVIF

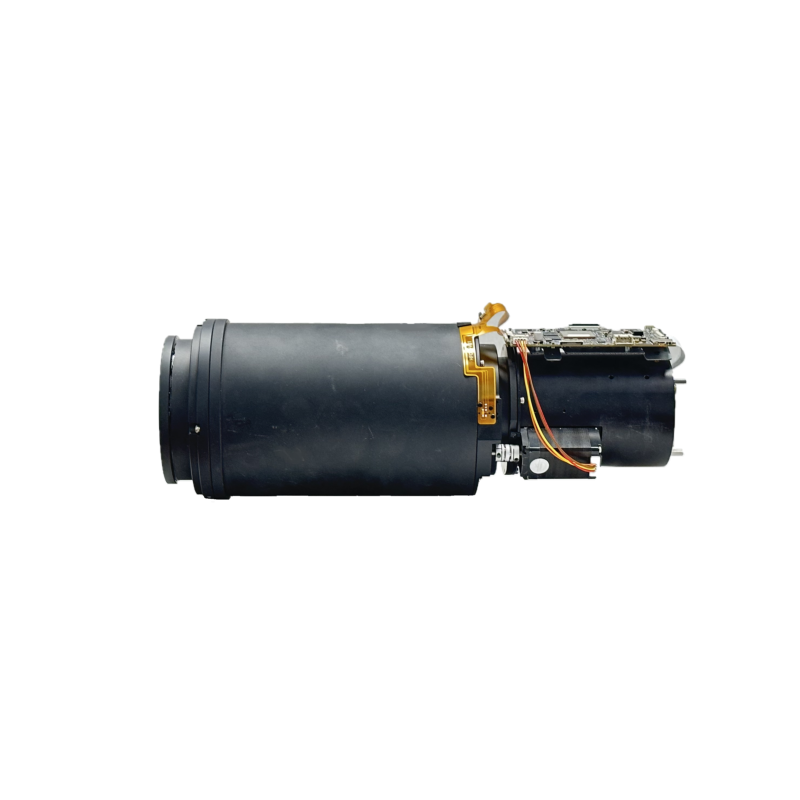

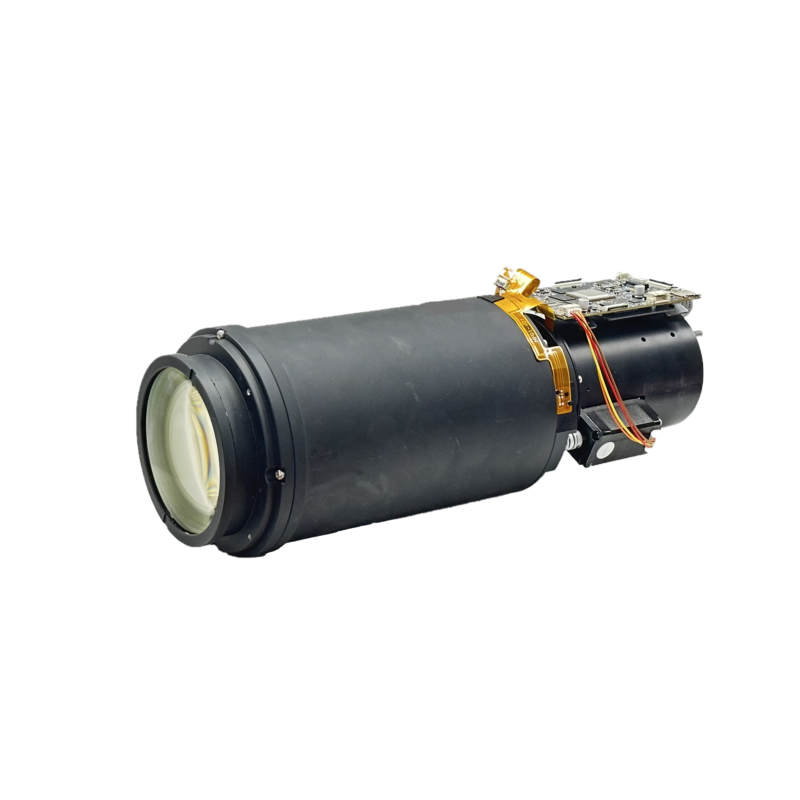

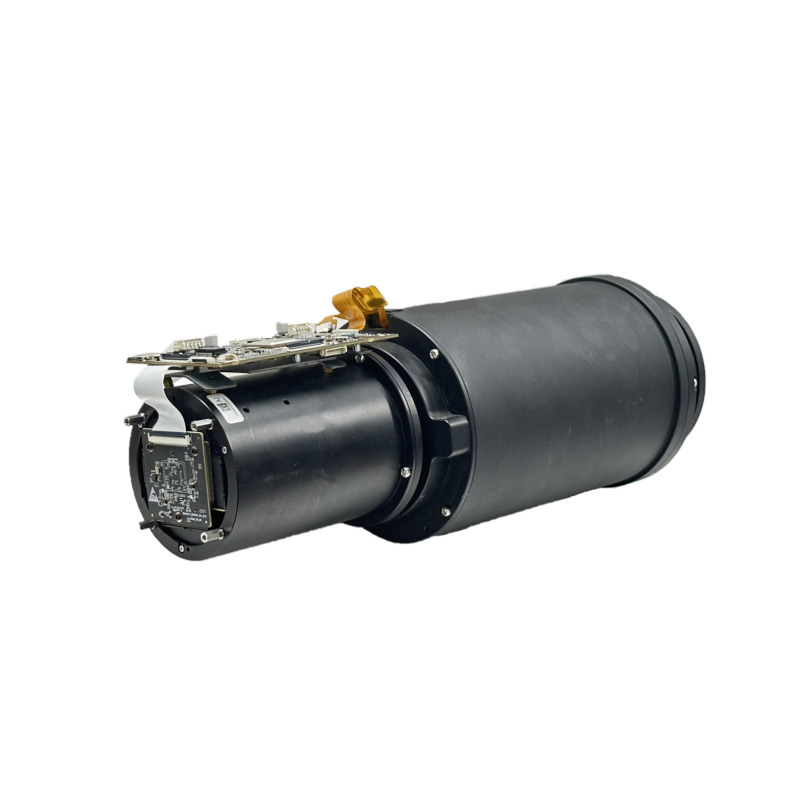

UV-ZNH4256 AI Ultra Zoom Camera Module
Intelligent Eye Anti-UAV Application for Border Defense and Security
AI-ISP (Intelligent Image Signal Processing)
Equipped with advanced neural networks, it can optimize images in real time and can also provide excellent clarity under harsh conditions (low light, haze, backlight).
Using AI noise reduction, WDR (wide dynamic range) and detail enhancement technologies, accurate target recognition can be achieved.
AI-AF (Artificial Intelligence Autofocus)
Tracking autofocus based on deep learning ensures fast and stable locking of long-distance moving targets (drones, ships, vehicles).
Eliminates the common focus problems in traditional long-distance zoom systems.
4MP High Resolution + 56x Optical Zoom (14–784mm)
Ultra-long focal length range: 14mm wide-angle monitoring, 784mm ultra-telephoto shooting.
4MP high-definition imaging with minimal distortion, allowing meticulous long-distance observation.
Strong environmental adaptability
IR CUT & NIR (Near Infrared) Support: Seamless day-night conversion, real color reproduction (daytime) and high sensitivity infrared imaging (nighttime).
Wide operating temperature range, designed for harsh outdoor deployments (border, coastal, wilderness).
Application scenarios · Mission-critical solutions
1. Border and coastal surveillance
Remote detection of suspicious ships, invasions and smuggling activities.
Integrate with radar/EO systems to form a multi-layer security network.
2. Anti-UAS (UAV System) and
reconnaissance
High-precision UAV detection, tracking and classification for counter-UAV systems.
Supports RF/radar fusion to achieve comprehensive airspace security.
3. Forest fires and ecological monitoring
Smoke/flame detection based on artificial intelligence has super zoom function to provide early warning.
4. High-altitude observation of the city
Panoramic + zoom monitoring to protect critical infrastructure (airports, ports, stadiums)
Intelligent Eye Anti-UAV Application for Border Defense and Security
AI-ISP (Intelligent Image Signal Processing)
Equipped with advanced neural networks, it can optimize images in real time and can also provide excellent clarity under harsh conditions (low light, haze, backlight).
Using AI noise reduction, WDR (wide dynamic range) and detail enhancement technologies, accurate target recognition can be achieved.
AI-AF (Artificial Intelligence Autofocus)
Tracking autofocus based on deep learning ensures fast and stable locking of long-distance moving targets (drones, ships, vehicles).
Eliminates the common focus problems in traditional long-distance zoom systems.
4MP High Resolution + 56x Optical Zoom (14–784mm)
Ultra-long focal length range: 14mm wide-angle monitoring, 784mm ultra-telephoto shooting.
4MP high-definition imaging with minimal distortion, allowing meticulous long-distance observation.
Strong environmental adaptability
IR CUT & NIR (Near Infrared) Support: Seamless day-night conversion, real color reproduction (daytime) and high sensitivity infrared imaging (nighttime).
Wide operating temperature range, designed for harsh outdoor deployments (border, coastal, wilderness).
Application scenarios · Mission-critical solutions
1. Border and coastal surveillance
Remote detection of suspicious ships, invasions and smuggling activities.
Integrate with radar/EO systems to form a multi-layer security network.
2. Anti-UAS (UAV System) and
reconnaissance
High-precision UAV detection, tracking and classification for counter-UAV systems.
Supports RF/radar fusion to achieve comprehensive airspace security.
3. Forest fires and ecological monitoring
Smoke/flame detection based on artificial intelligence has super zoom function to provide early warning.
4. High-altitude observation of the city
Panoramic + zoom monitoring to protect critical infrastructure (airports, ports, stadiums)
