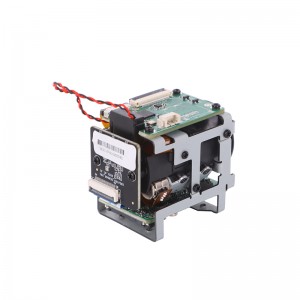

4MP 4X NDAA Compliant Network Zoom Camera Module
Product Description
- Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment
- Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics
- Support 255 Presets, 8 Patrols
- Support Timed Capture and Event Capture
- Support One-click watch and One-click Cruise Functions
- Support One Channel Audio Input and Output
- Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output
- Support 256G Micro SD/SDHC/SDXC
- Support ONVIF
- Optional Interfaces for Convenient Function Expansion
Specification
Specifications | ||
| Camera | Image Sensor | 1/2.8” Progressive Scan CMOS |
| Minimum Illumination | Color:0.001 Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON) | |
| Shutter | 1/25s to 1/100,000s; Supports delayed shutter | |
| Auto Iris | DC | |
| Day/Night Switch | IR cut filter | |
| Lens | Focal Length | 3-12mm, 4X Optical Zoom |
| Aperture Range | F1.6-F3 | |
| Horizontal field of view | 108.6-32°（wide-tele） | |
| Minimum working distance | 1000mm-1000mm (wide-tele) | |
| Zoom speed | Approximately 1.5s(optical lens, wide to tele) | |
| Compression Standard | Video Compression | H.265/H.264/MJPEG |
| H.265 Type | Main Profile | |
| H.264 Type | BaseLine Profile / Main Profile / High Profile | |
| Video Bitrate | 32Kbps~16Mbps | |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) | |
| Image(Maximum Resolution:2560*1440) | Main Stream | 50Hz: 25fps (2560*1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560*1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps(704×576); 60Hz: 30fps(704×576) | |
| Image settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | |
| BLC | Support | |
| Exposure mode | AE/Aperture Priority/Shutter Priority/Manual Exposure | |
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus | |
| Area exposure / focus | Support | |
| Optical fog | Support | |
| Day/Night Switch | Automatic, manual, timing, alarm trigger | |
| 3D noise reduction | Support | |
| Picture overlay switch | Support BMP 24-bit image overlay, customizable area | |
| Region of interest | ROI supports three streams and four fixed areas | |
| Network | Storage function | Support USB extend Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Smart Calculation | Intelligent computing power | 1T |
| Interface | External Interface | 36pin FFC (Network port, RS485, RS232, SDHC, Alarm In/Out, Line In/Out, power) |
| General | Working Temperature | -30℃~60℃, humidity≤95%(non-condensing) |
| Power supply | DC12V±25% | |
| Power consumption | 2.5W MAX(IR Maximum,4.5W MAX) | |
| Dimensions | 54.6*46.5*34.4 | |
| Weight | 60g | |
